Customized Assembly tools
for Aerospace industry
Accessibility, ergonomics, and torque range influence the great variety of tools in the Aerospace Industry. There are two main configuration shapes:

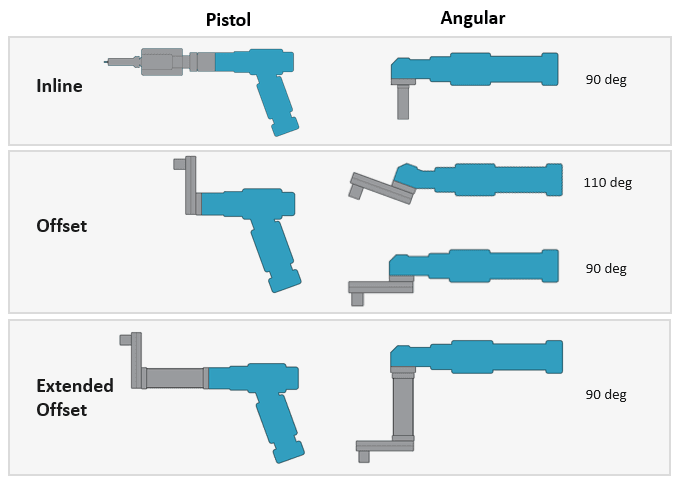

Configuration for horizontal tightening
In-line: good accessibility up to 12 Nm
Off-set, and Extended-Offset: for cramped areas up to 10 Nm.
Versatile configurations for almost any area
Hold & Drive 90°: good accessibility up to 15 Nm
Off-set and Extended-Offset 90° for cramped areas and torques up to 75 Nm
Off-set and Extended-Offset 110° for extra-cramped areas and torques up to 75 Nm
All “Off-set” tools include Quick Index Adapter for improved ergonomics and accessibility.
* Extended Offset version is also available with 110 deg. Angle head

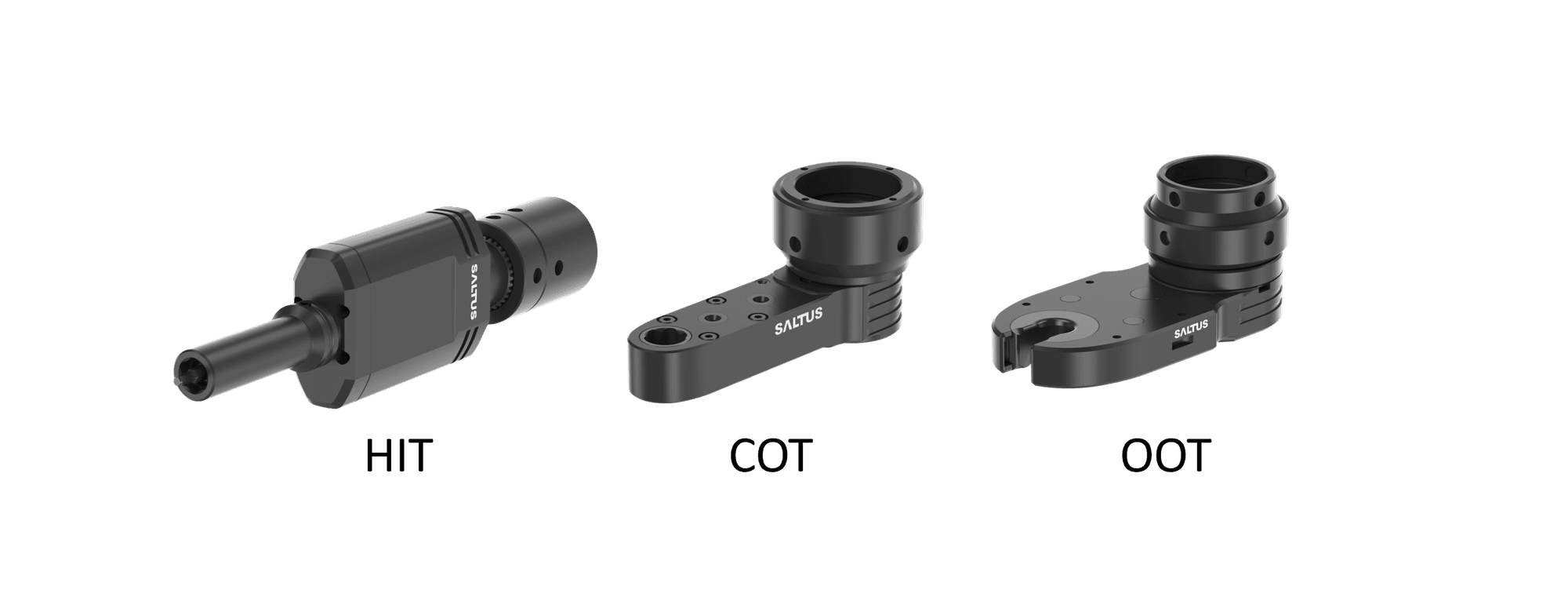

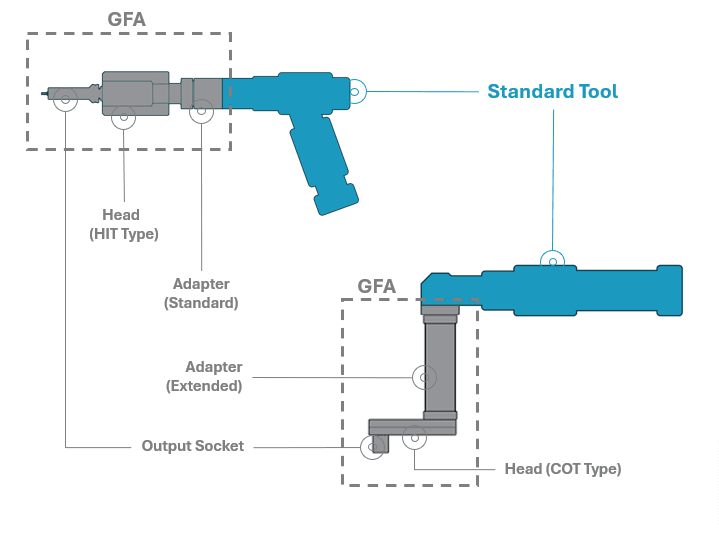

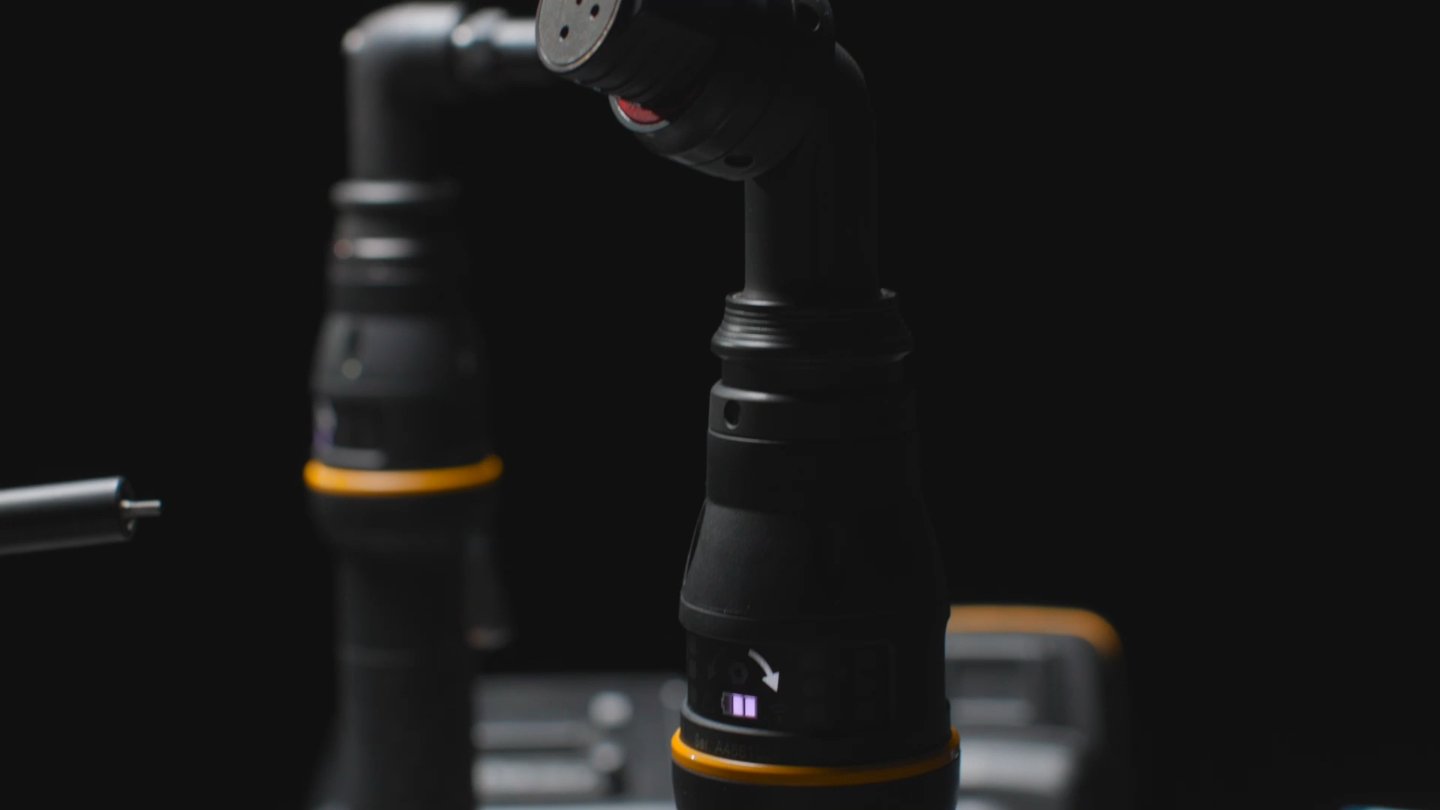

Atlas Copco develops customized tools composed of two parts: the standard tool and the SALTUS Geared Front Attachment (GFA), commonly referred to as a “crow-foot” or “offset head.”
This leaflet will focus on our newest family battery tools, the IxB and XB families.
Hold and drive Inline Torque (HIT): Only for pistol configuration.
Closed Offset Torque (COT): For both pistol and angular configurations. With Standard socket and Hold and Drive socket.
Open Offset Torque (OOT): Only for angular configurations used for B-Nut / Tube-Nut applications.

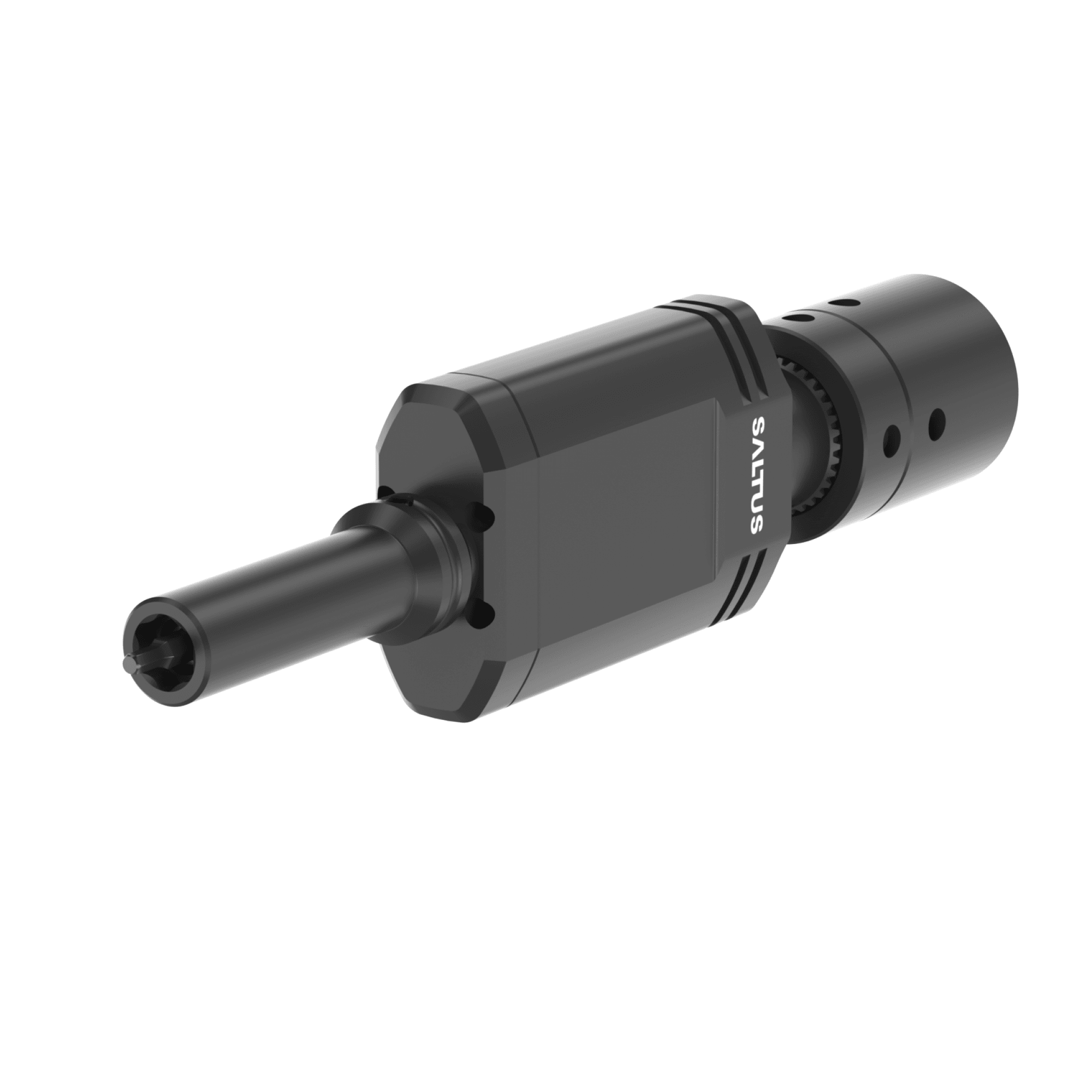

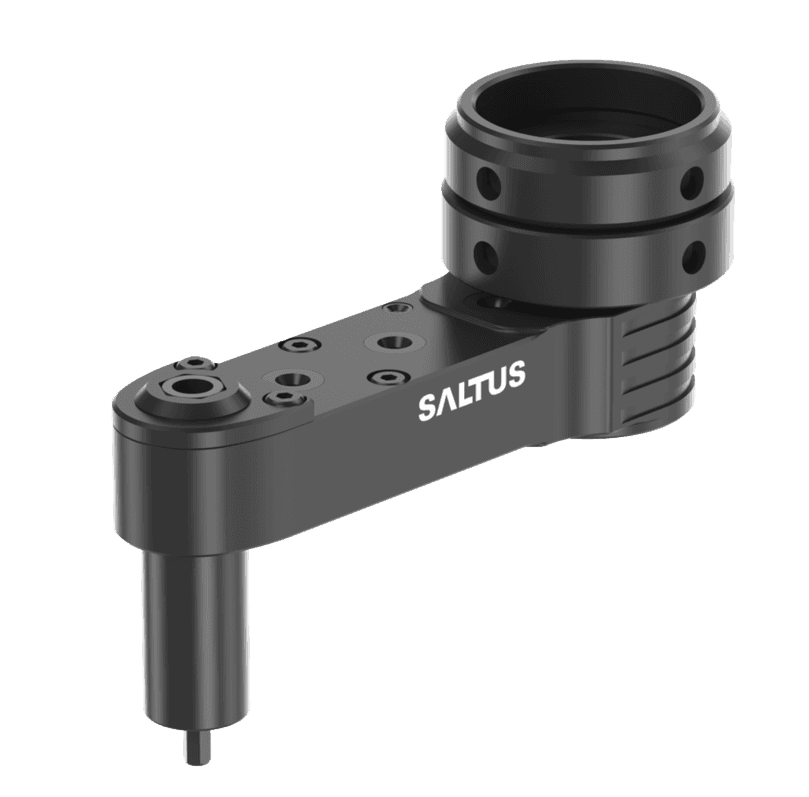

Within our family of Geared Front Attachments (GFA) we have the Hold and drive In-line Head for Torque applications (HIT), which is specially designed for pistol configurations within the Aerospace Industry.
Know more
Dimensional drawingsHIT
Type: Hold and Drive: T, PT, SO
Extension: up to 100 mm
Profile
Within our family of Geared Front Attachments (GFA) we have the Closed-end Off-set Head for Torque applications (COT), which is especially useful for tightening in cramped areas.

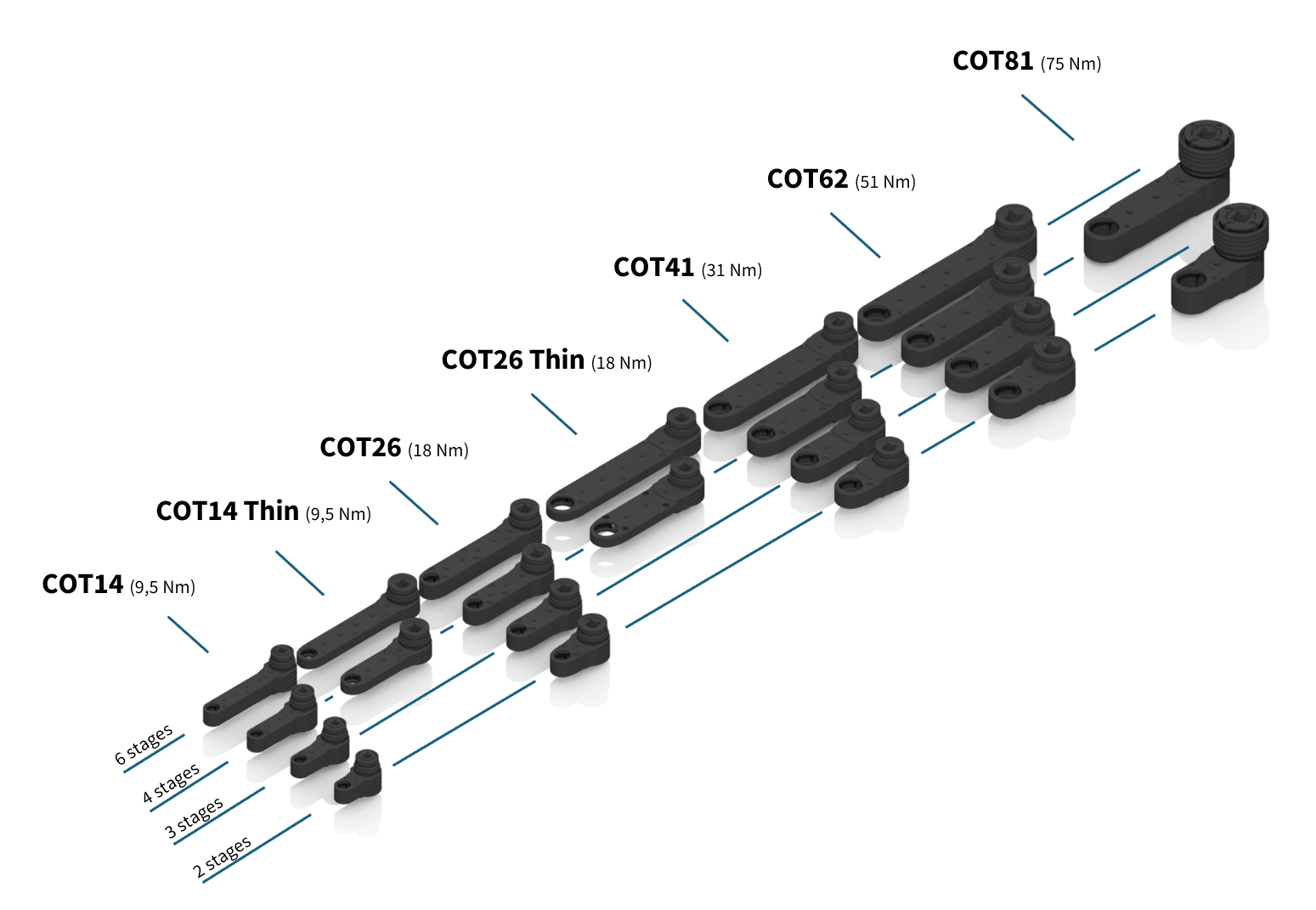

Our range of COT can reach 75 Nm. Depending on the model it can be configured in 2, 3, 4 and 6 stages. The possibilities are endless in combination with our 110-angle heads and customized output sockets.
Dimensional drawings:COT 81COT 62COT 41COT 26 ThinCOT 26COT 14 ThinCOT 14
Choose from 22 available models based on accessibility and torque requirements.

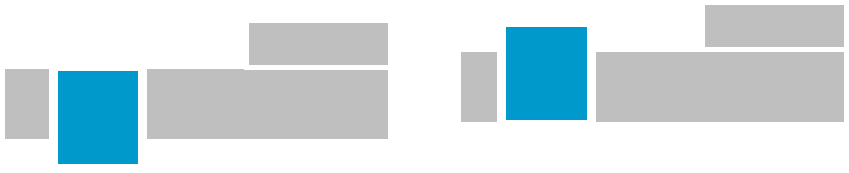

Downwards
Upwards

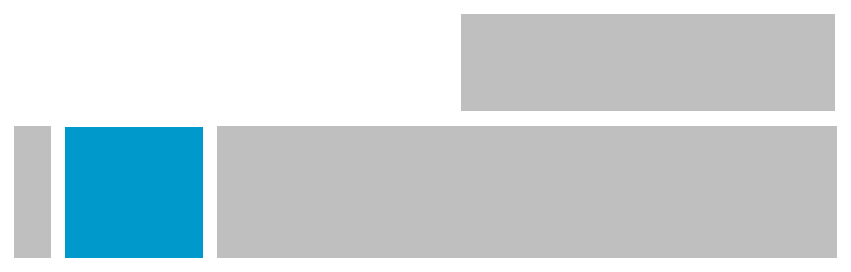

Standard: T
Hold and Drive: T, PT, SO

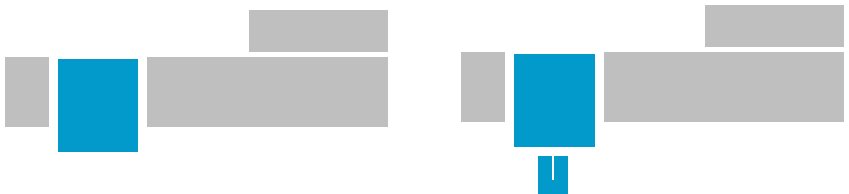

Flush
Extended

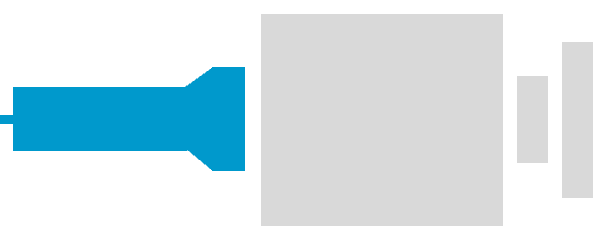

The Adapter is the crucial connection between the angle head and the GFA module, ensuring seamless functionality. There are two types of Adapters:

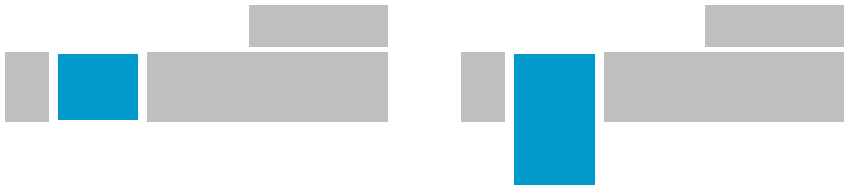

Fixed Index: Designed for consistent orientation, keeps the GFA static without allowing adjustments.
Quick Index: enhanced flexibility allows for adjusting the angle between tightenings easily, ensuring optimal tool accessibility for various tasks.
In both cases, the Adapter can be of Standard length (2”) or Extended length (3”, 5” and 8”)

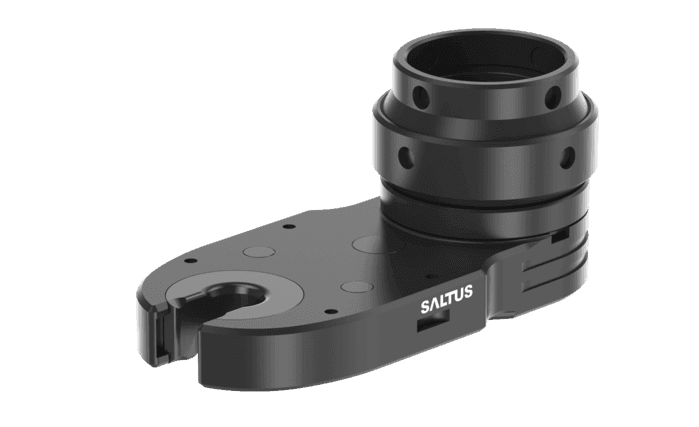

Within our family of Geared Front Attachments (GFA), we have the open-end offset head for Torque applications (OOT), which is especially useful for tube nut tightening applications.

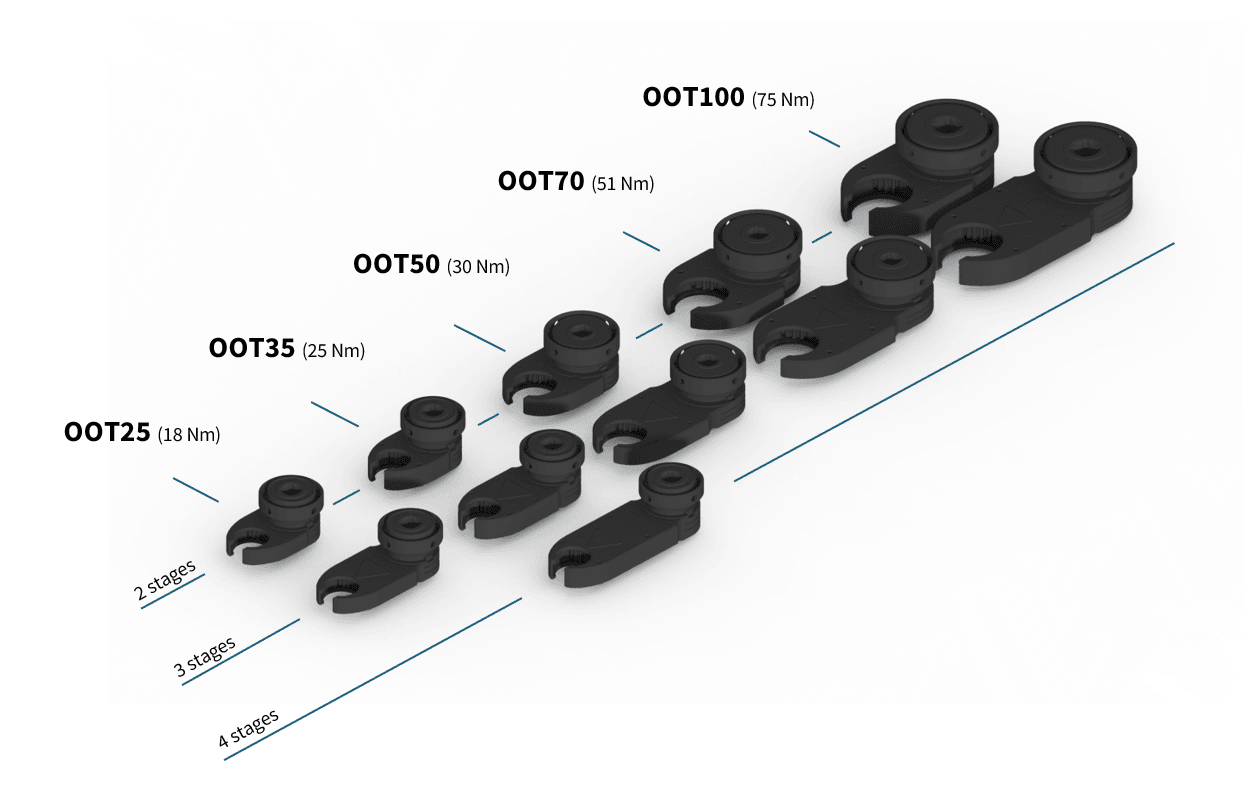

Our OOT range can reach 75 Nm. It can be configured in 2 or 3 stages, and OOT35 can reach 4 stages. In combination with our 110-angle heads and customized output sockets, the possibilities are endless.
Dimensional drawingsOOT 100OOT 70OOT 50OOT 35OOT 25
Select the right head among the 11 available models based on accessibility and torque requirements.
The Adapter serves as the crucial connection between the angle head and the GFA module, ensuring seamless functionality. In the case of OOT, there is only the Fixed type is available. (Indexing Adaptor not available)
The adapter can be Standard length (2”) or Extended length (3”, 5” and 8”)
