Customized assembly tools

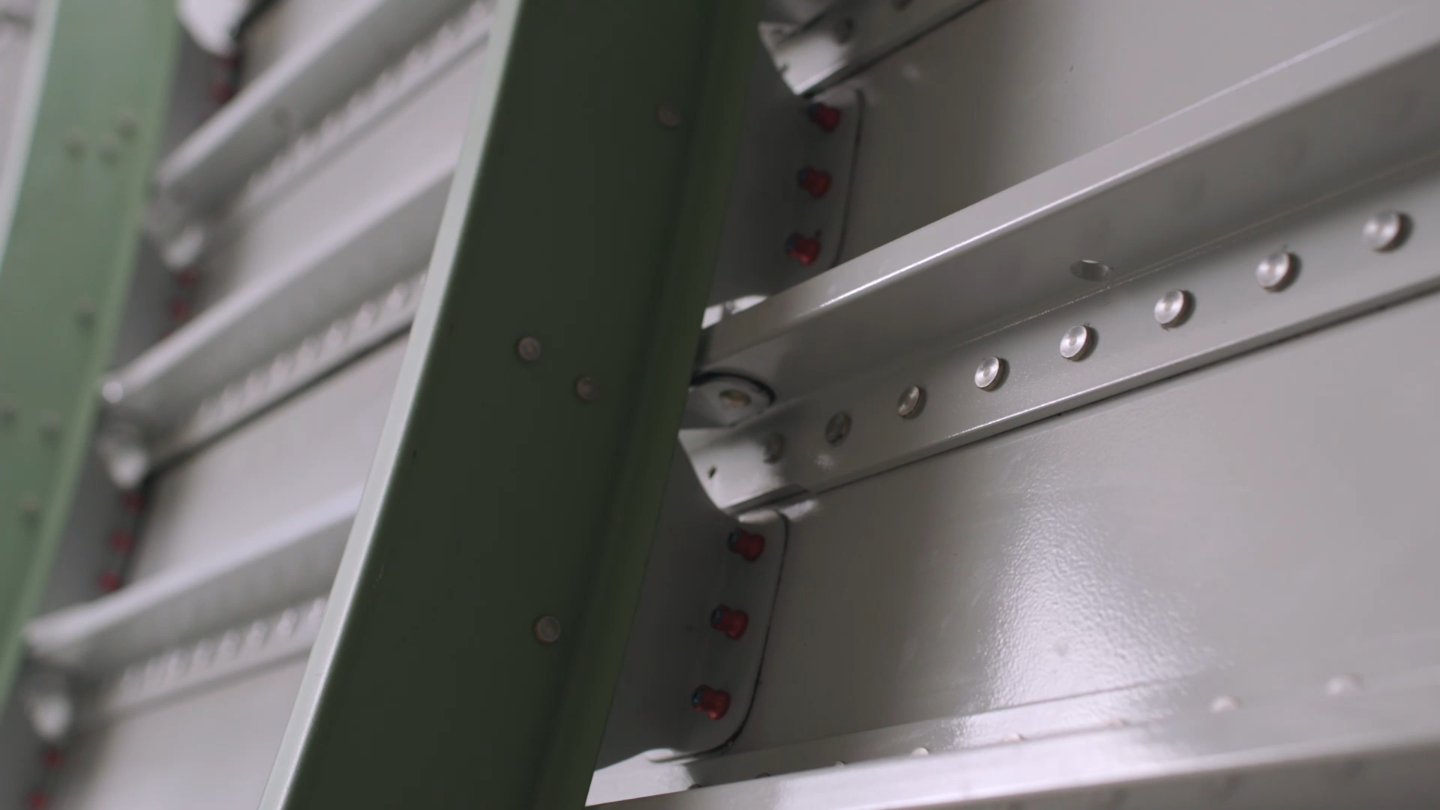

For Aerospace applications with limited accessibility

Atlas Copco solutions

Atlas Copco offers within its wide portfolio of Assembly tools the XB and the IxB families. Discover how these tools can fit into your application with SALTUS GFA’s.

XB family

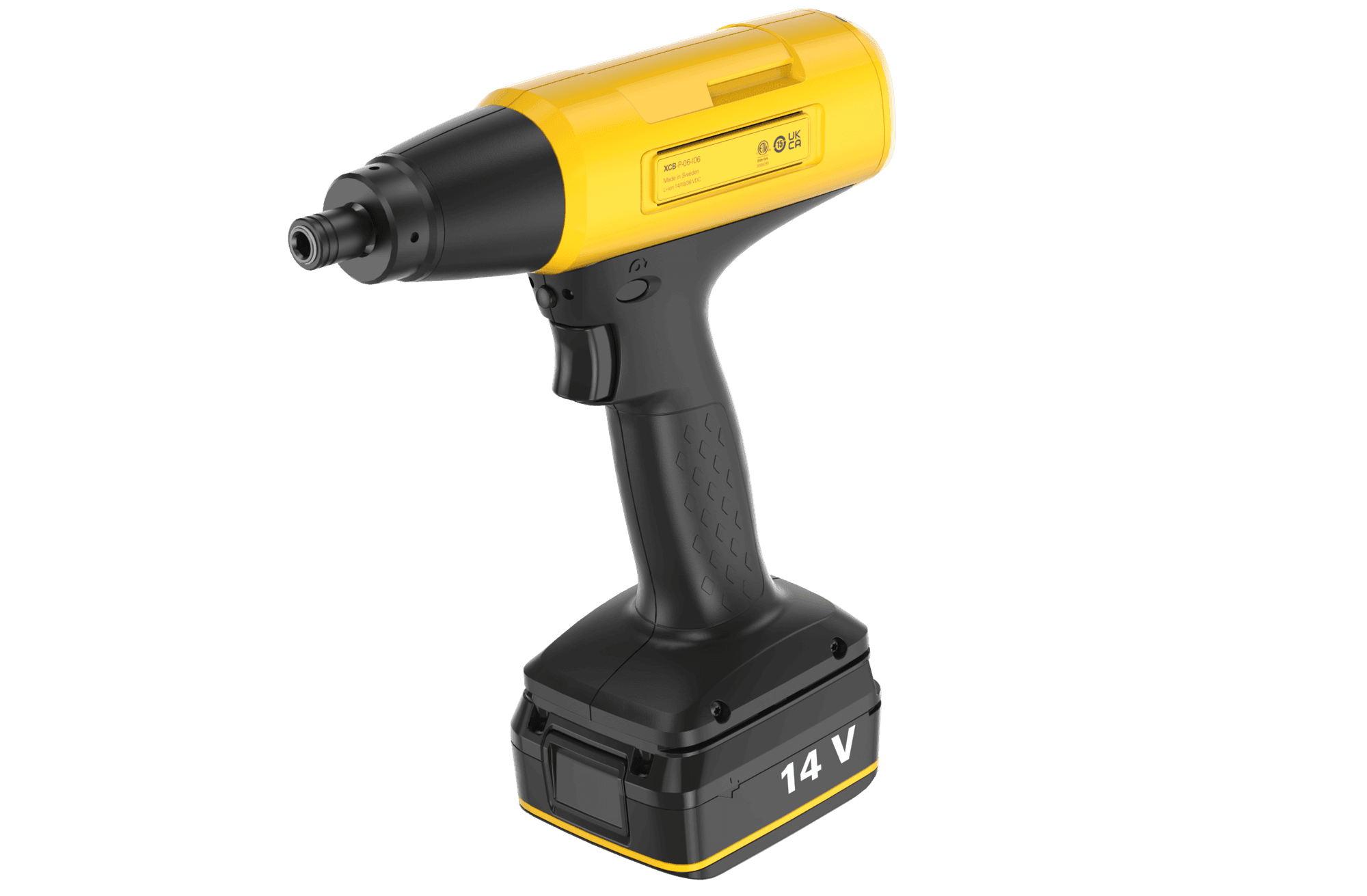

Combining speed and precision, the XB is the perfect companion to start the journey towards Smart Integrated Assembly. The XB range consists of two new all-electric tools: the XCB, a mechanical clutch tool built for standard applications, and the XTB, a torque transducer tool tailored to quality-critical applications.

Know more

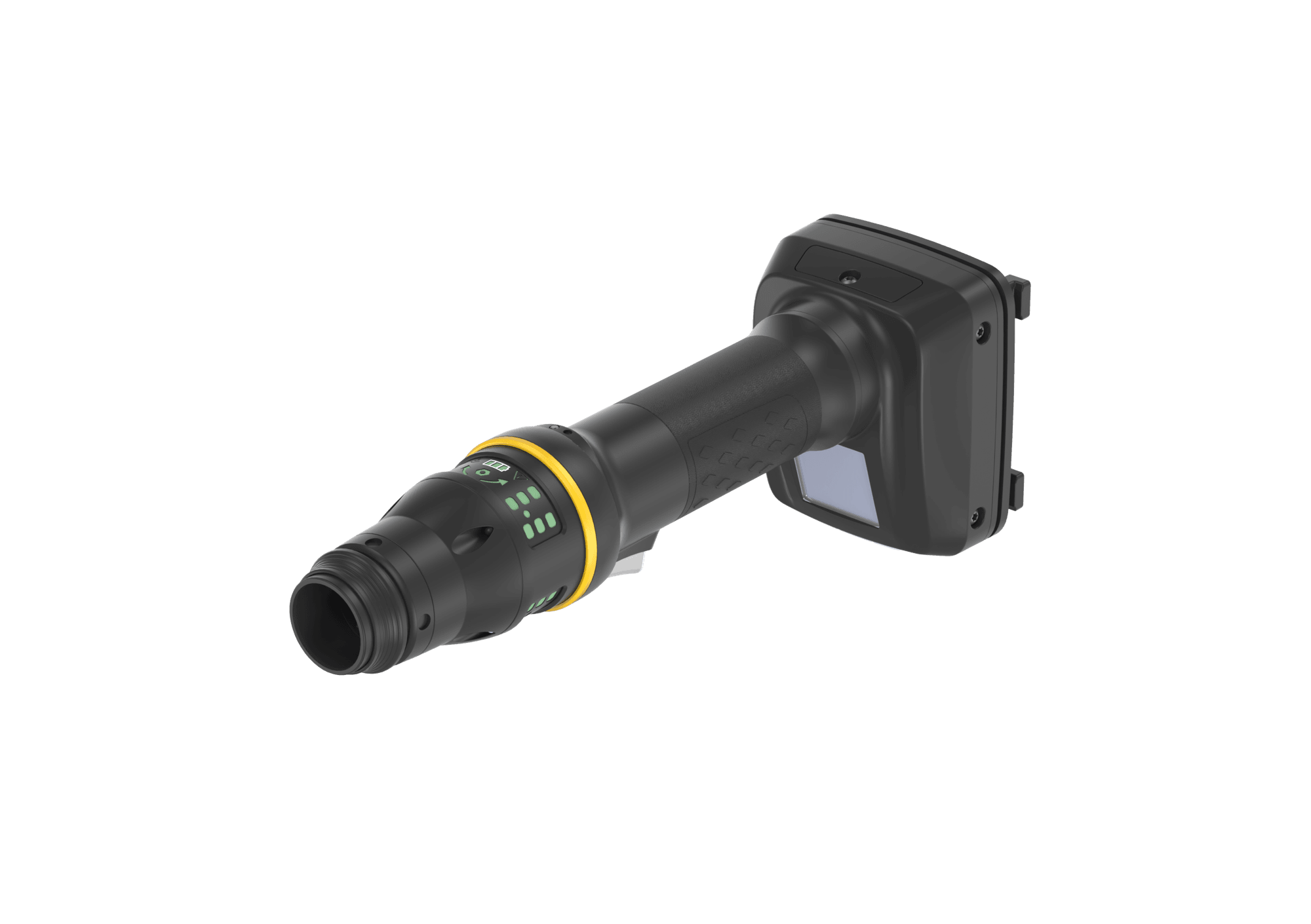

Tensor IxB family

Advanced electric assembly tools designed for industrial tightening applications. These tools stand out due to their integrated controller technology, eliminating the need for external control boxes. This integration enhances flexibility, reduces setup complexity, and improves production efficiency.

Know more

XB – _{^{Customized tools up to 12 Nm – 106 in-lbs}}

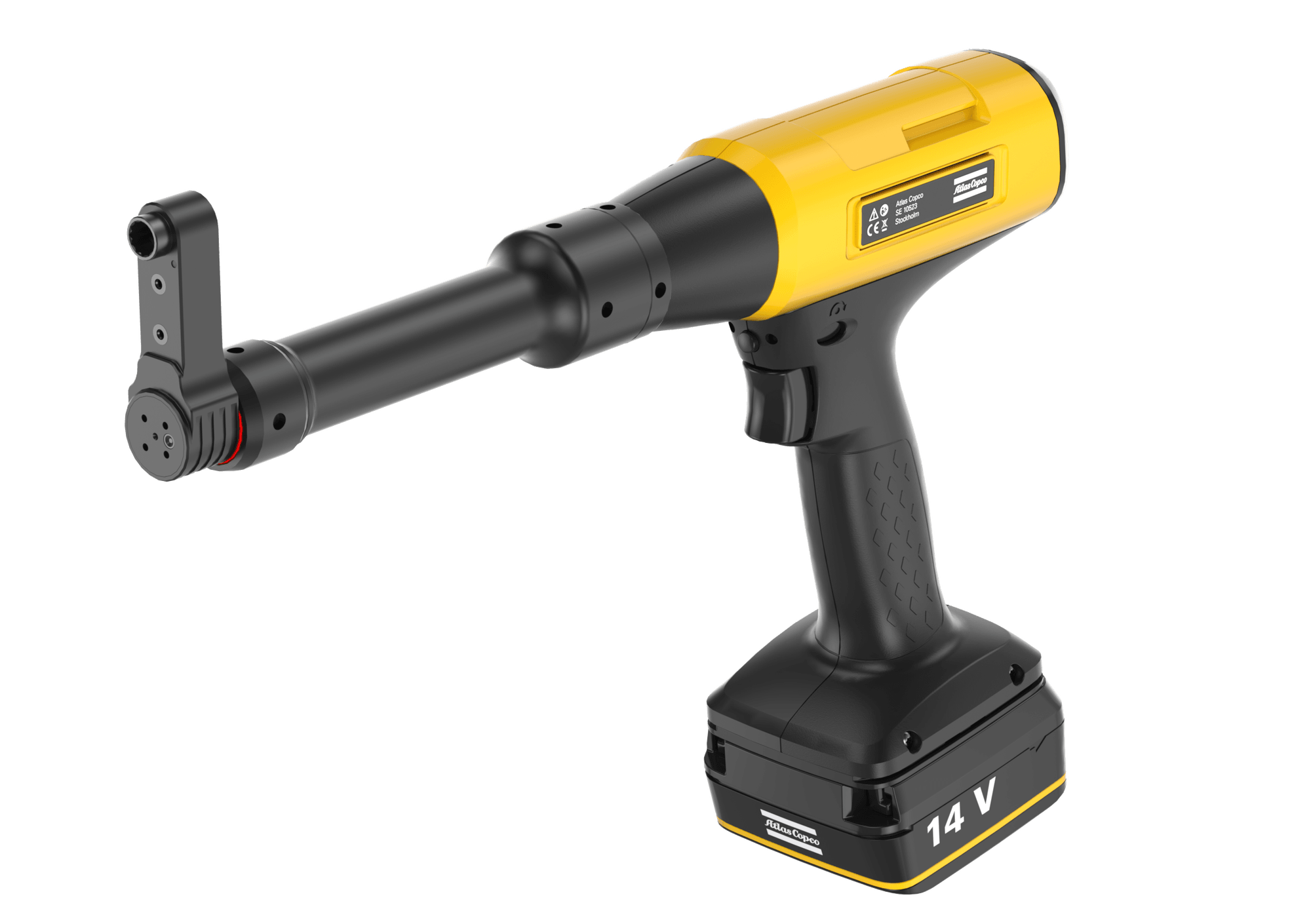

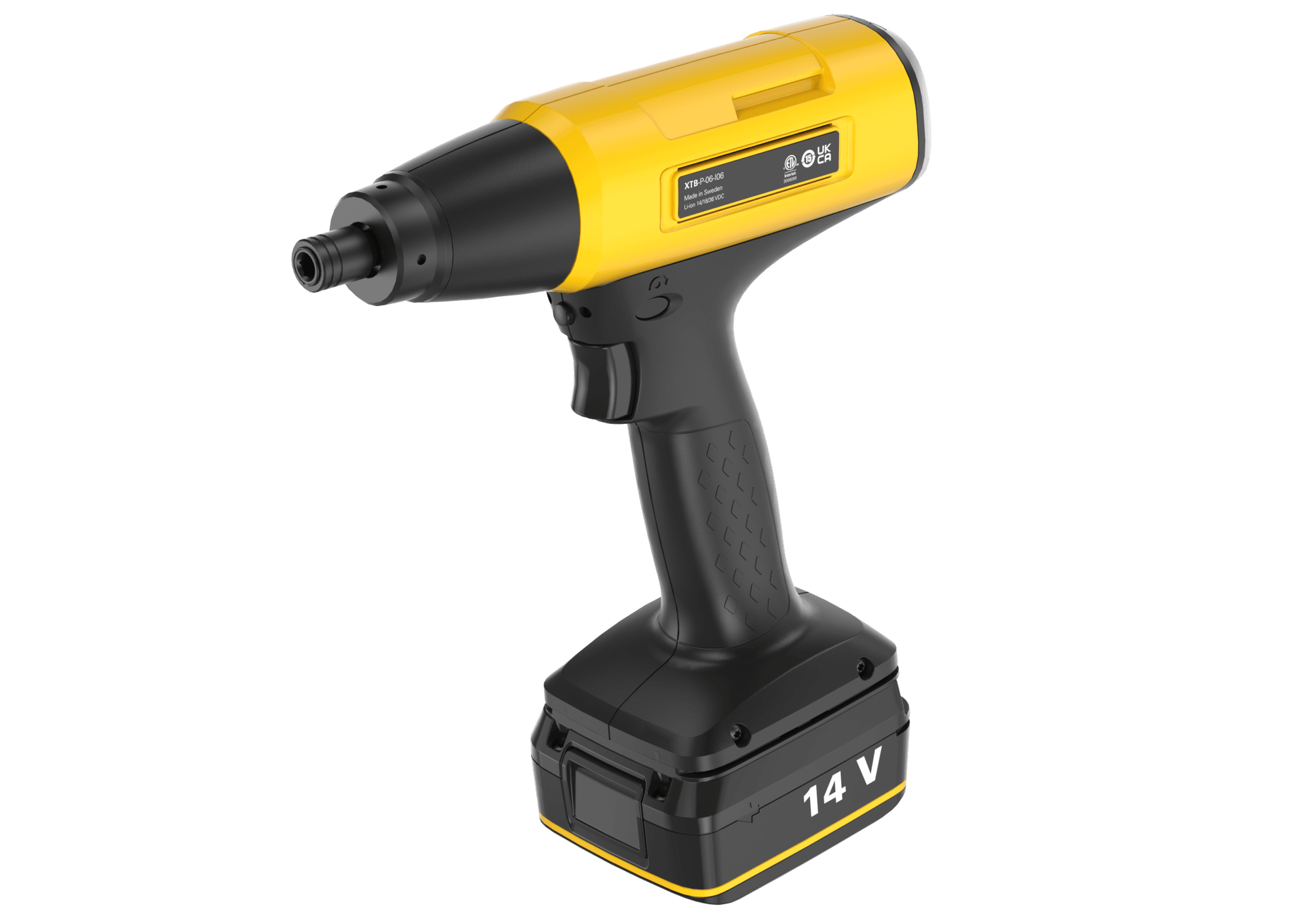

XCB-PThe Clutch tool XCB-P offers configurations like:

Inline up to 12 Nm.

Offset/Extended-Offset up to 10 Nm

Know more

XTB-PThe Transducer tool XTB-P offers configurations like:

Inline up to 12 Nm.

Offset/Extended-Offset up to 10 Nm

Know more

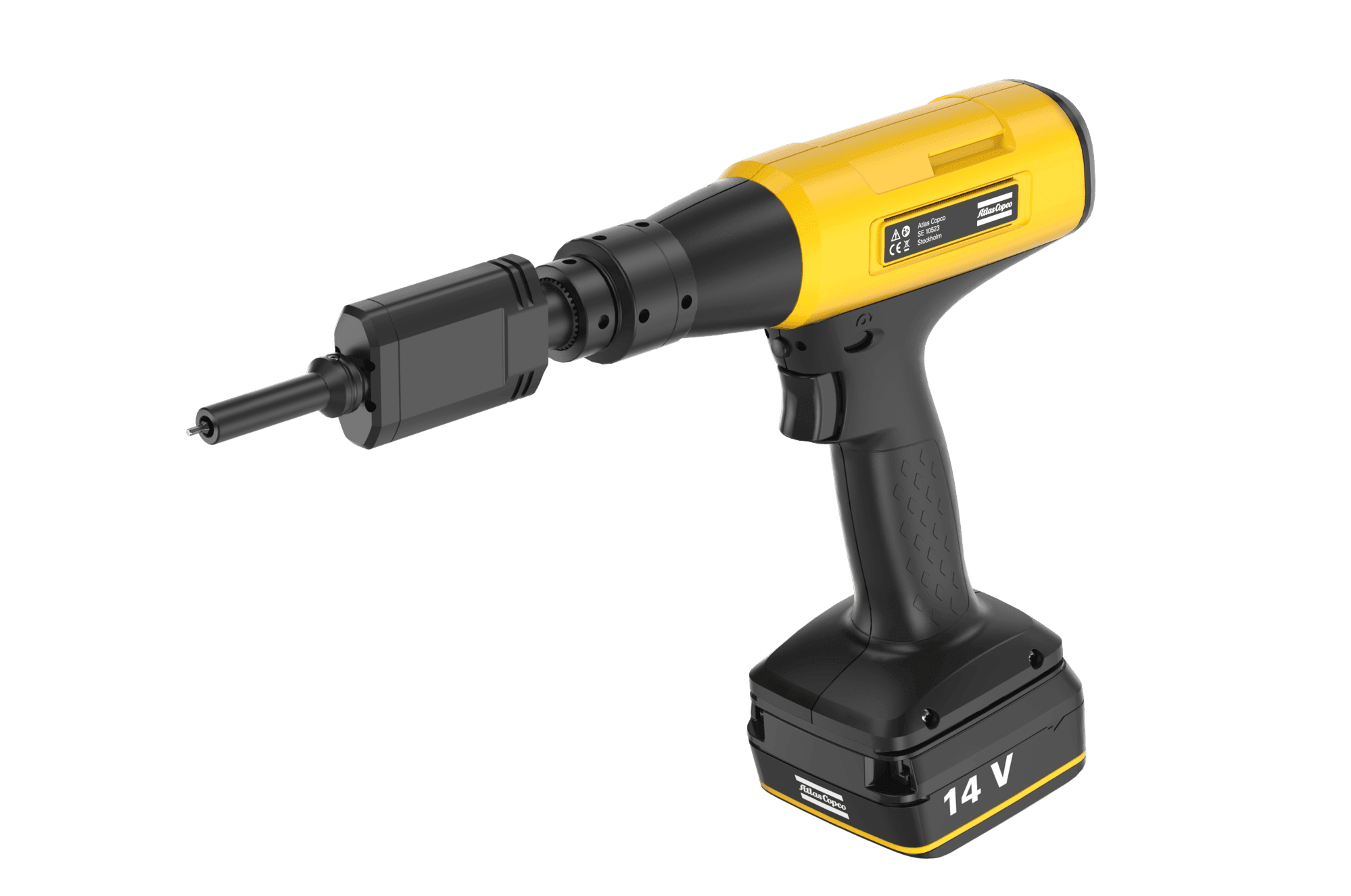

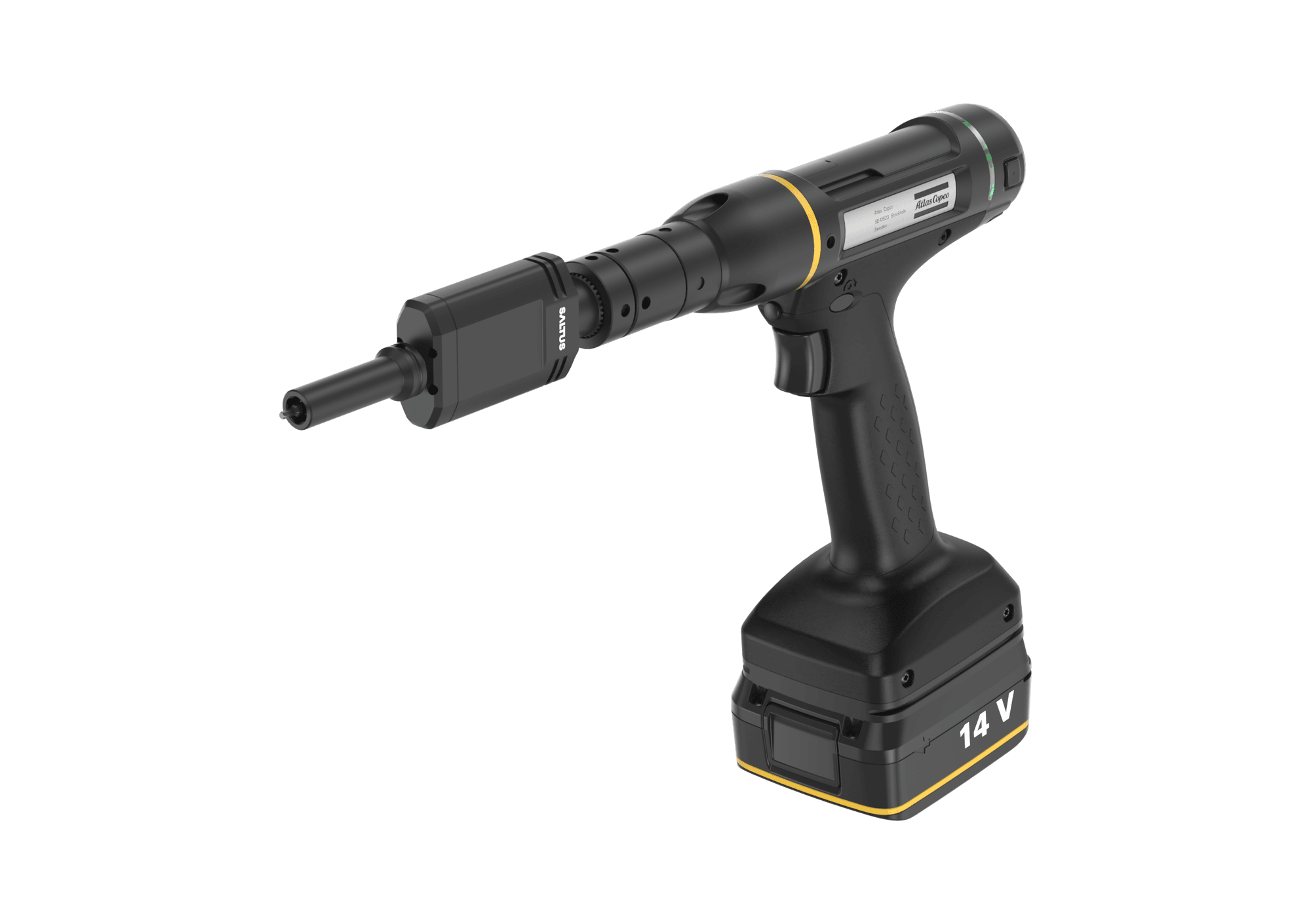

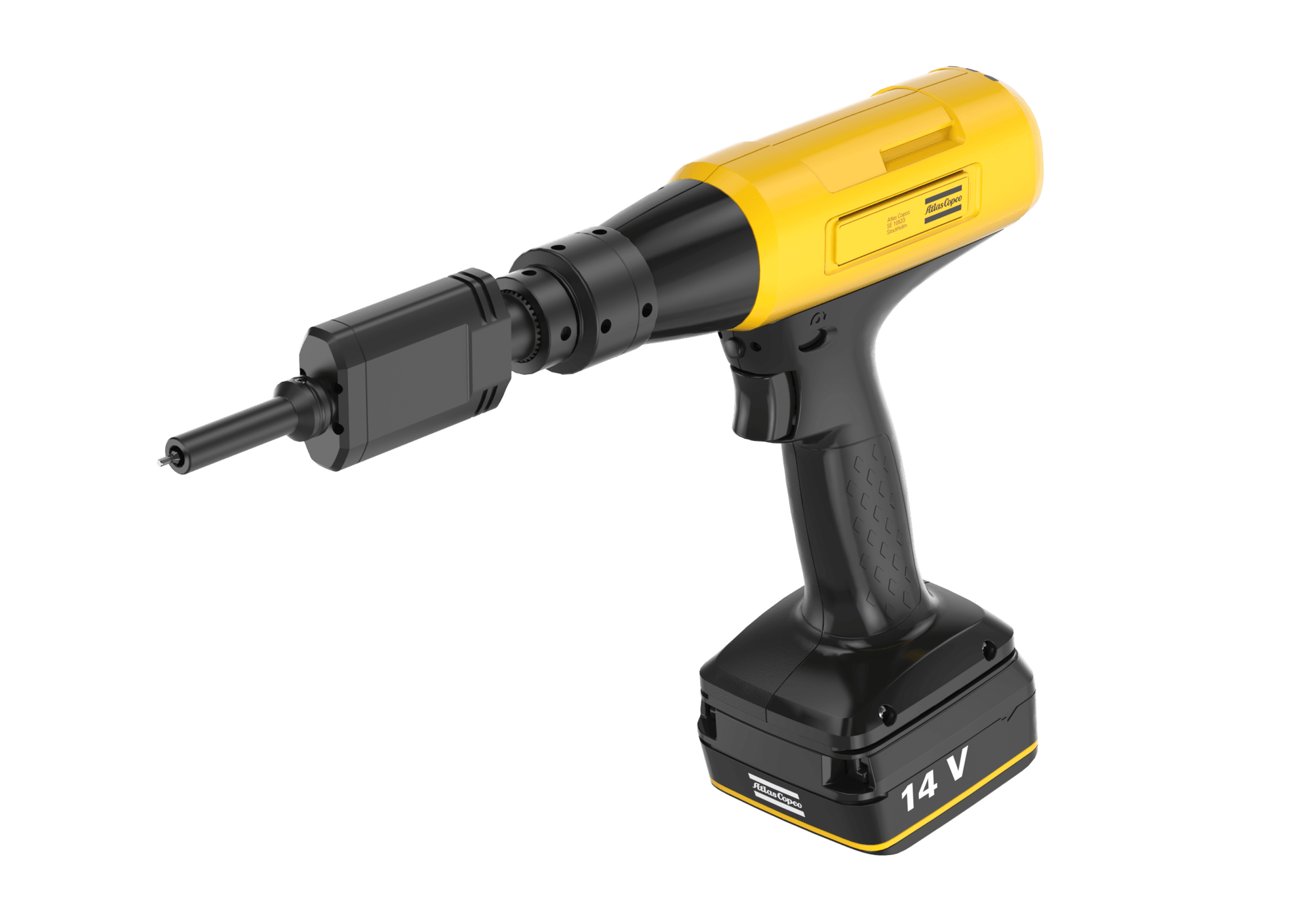

XCB-P: _{^{Pistol Inline & Pistol Offset 12 Nm – 106 in-lbs}}

The Inline configuration with HIT module retains all features and benefits of the XCB-P, allowing the possibility of tightening HAD fastener:

Socket Type: Hold and Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 8 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 12 Nm

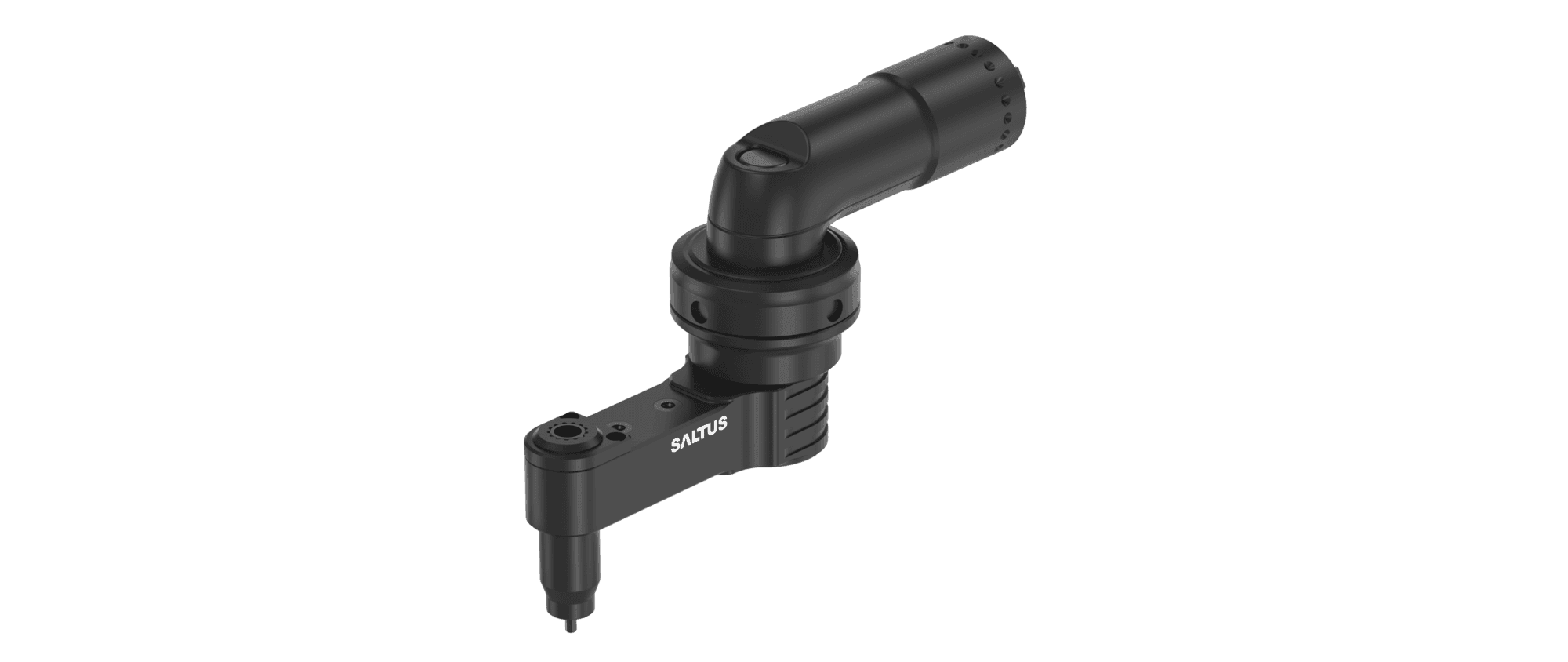

The Offset and Extended-Offset configurations enhance XCB-P features with better accessibility thanks to its wide range of GFAs:

GFA Extension: 2”, 3”, 5” or 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 10 Nm

Our patented adapter, engineered exclusively for XB tools, ensures exceptional durability and a precise fit—eliminating the need for glue. This innovative design not only enhances robustness but also simplifies maintenance for all tool components.

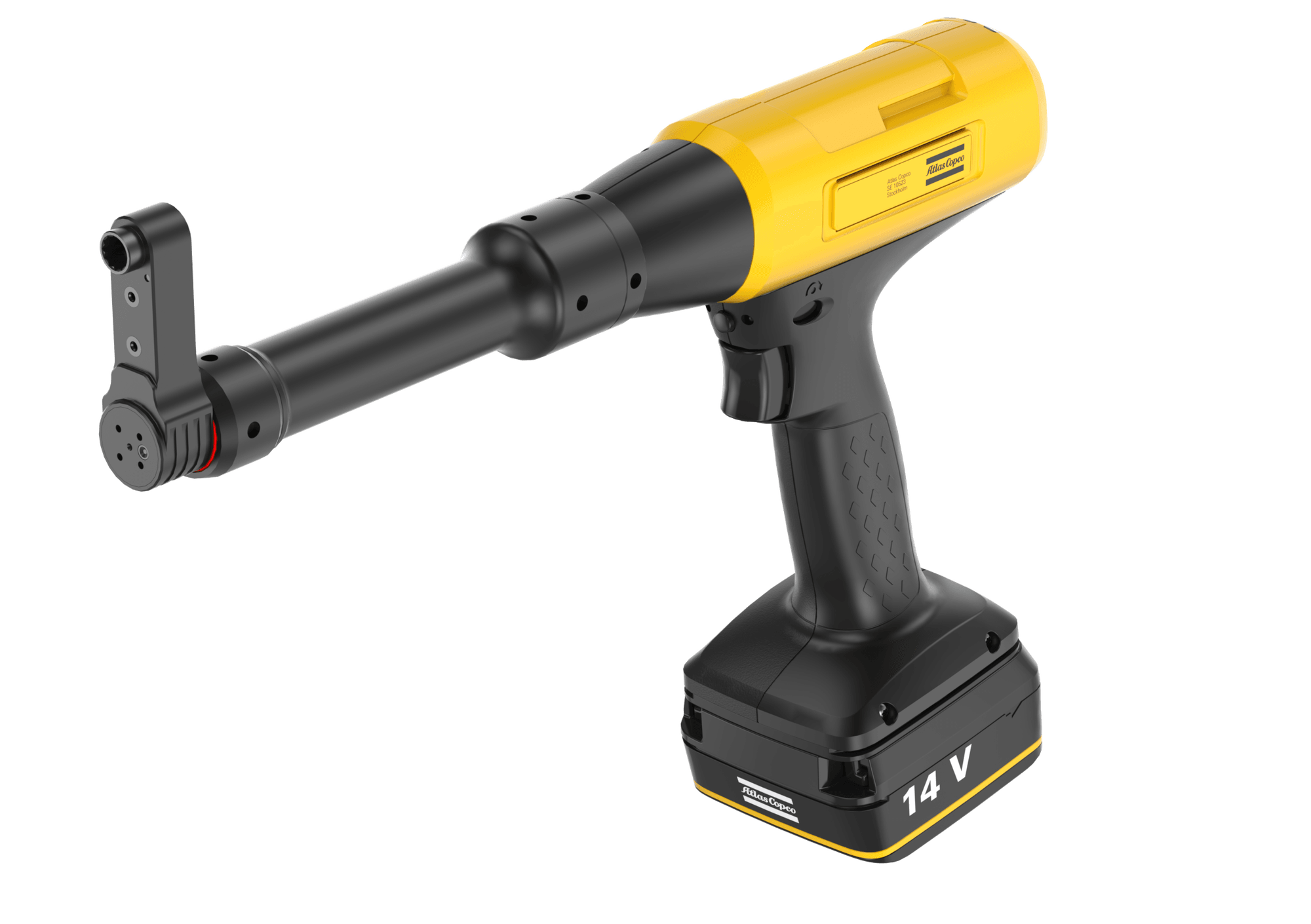

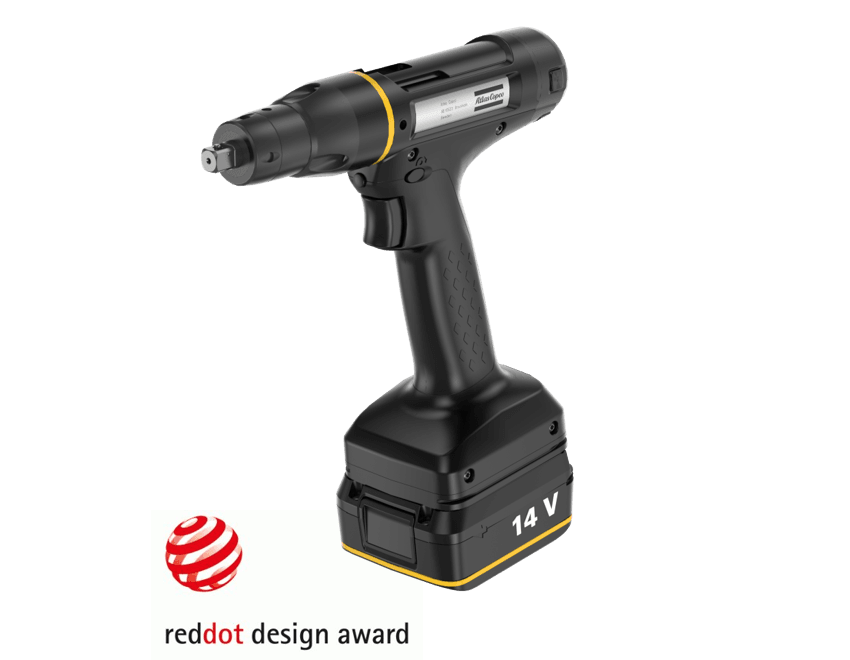

XTB-P: _{^{Pistol Inline & Pistol Offset 12 Nm – 106 in-lbs}}

The Inline configuration with HIT module retains all features and benefits of the XTB-P, allowing the possibility of tightening HAD fastener:

Socket Type: Hold and Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 8 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 12 Nm

The Offset and Extended-Offset configurations enhance XTB-P features with better accessibility thanks to its wide range of GFAs:

GFA Extension: 2”, 3”, 5” or 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 10 Nm

IXB – Customized tools _{^{up to 75 Nm – 664 in-lbs}}

ITB-PThe ITB-P offers configurations:

Inline up to 12 Nm.

Offset/Ext. Offset up to 10 Nm.

Know more

ICB-AThe ICB-A offers configurations:

Offset/Ext. Off. 90° up to 18 Nm.

HAD 90° up to 15 Nm.

Offset/Ext. Off. 110° up to 12 Nm.

Know more

ITB-AThe ITB-A offers configurations:

Offset/Ext. Offset 90 ° up to 75 Nm.

Offset 110° up to 75 Nm.

Know more

ICB-QThe ICB-Q tools come with customized Quick-Change Heads (Q2) in various configurations:

Offset 90° up to 18 Nm.

Offset 110° up to 12 Nm.

H&D 90° up to 15 Nm.

Know more

ITB-P: Inline and Offset _{^{12 Nm – 106 in-lbs}}

The Inline configuration with HIT module retains all features and benefits of the ITB-P, allowing the possibility of tightening HAD fastener:

Socket Type: Hold and Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 8 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 12 Nm.

Know more

The Offset and Extended-Offset configurations enhance ITB-P features with better accessibility thanks to its wide range of GFAs:

Adapter length: 2”, 3”, 5” or 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 10 Nm

Know more

Note: GFAs are not compatible with pulse tools

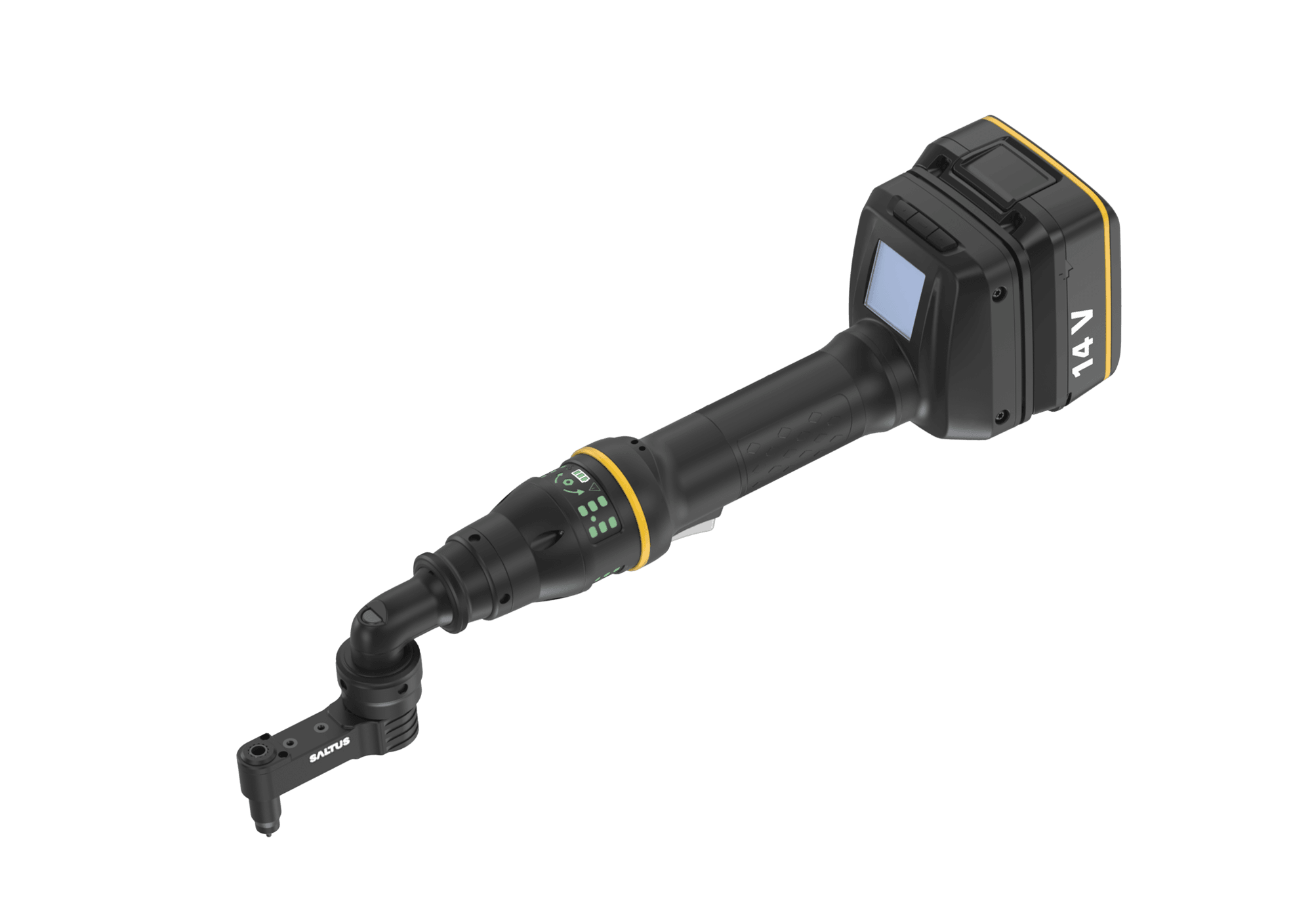

ICB-A: _{^{Offset 90°/110° and HAD 15 Nm – 133 in-lbs}}

The Offset and Extended Offset 90° configurations enhance ICB-A features with better accessibility thanks to its wide range of GFAs:

Adapter length: 3”, 5” and 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 15 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 18 Nm

Know more

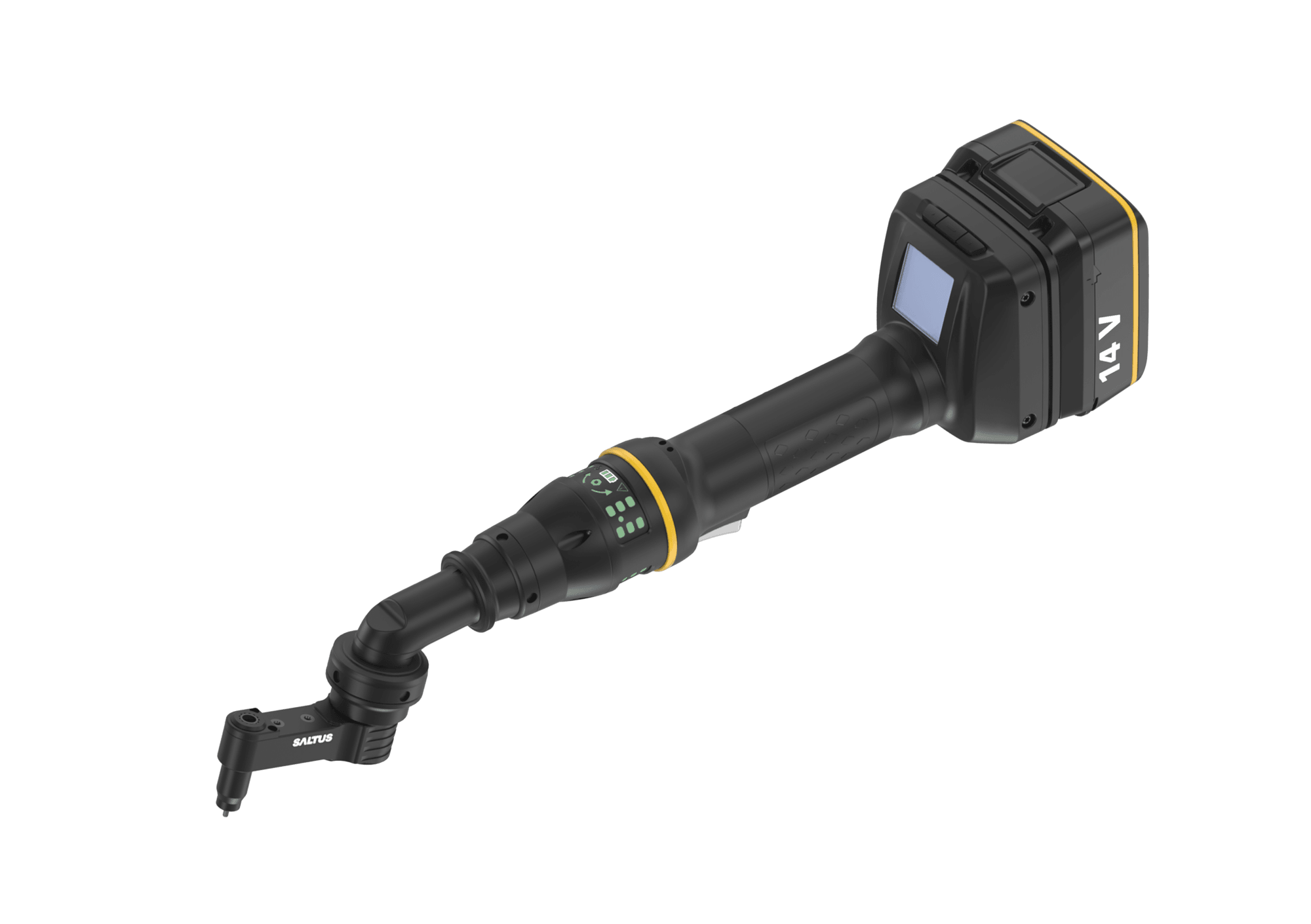

The Offset and Extended Offset 110°. configurations enhance ICB-A features with better accessibility and ergonomics thanks to its 110 deg. Angle head and the wide range of GFAs:

Adapter length: 3”, 5” and 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 15 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 12 Nm

Know more

The Hold and Drive 90°. Configuration keeps all the features and benefits of the ICB-A enabling the possibility of tightening Hold and Drive fasteners. This version is recommended when the accessibility is not so critical to need any of the previous offset versions.

Socket Type: Hold & Drive (HAD)
Socket Extension: up to 100 mm
Socket Size: up to 10 mm
Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 15 Nm

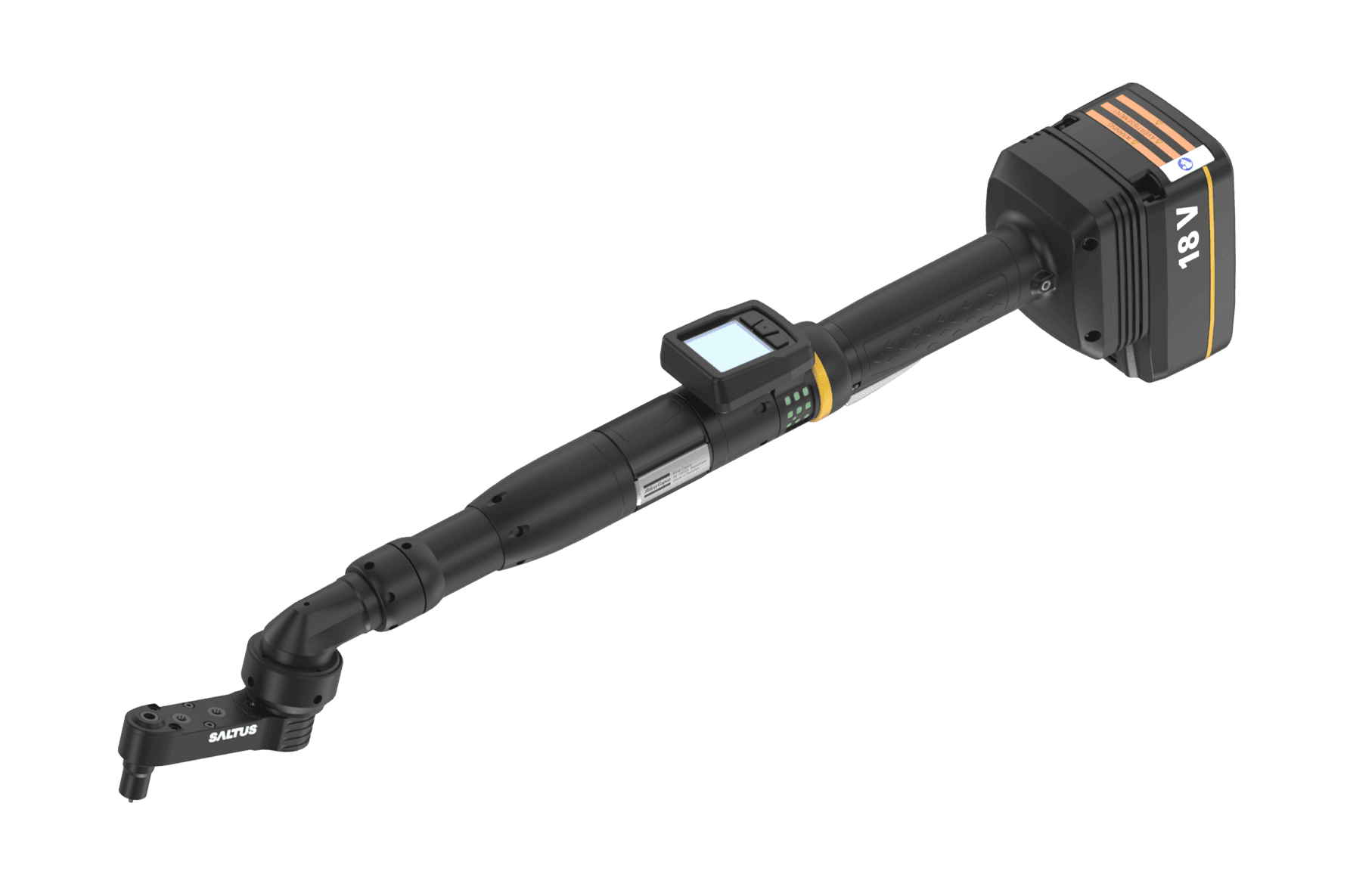

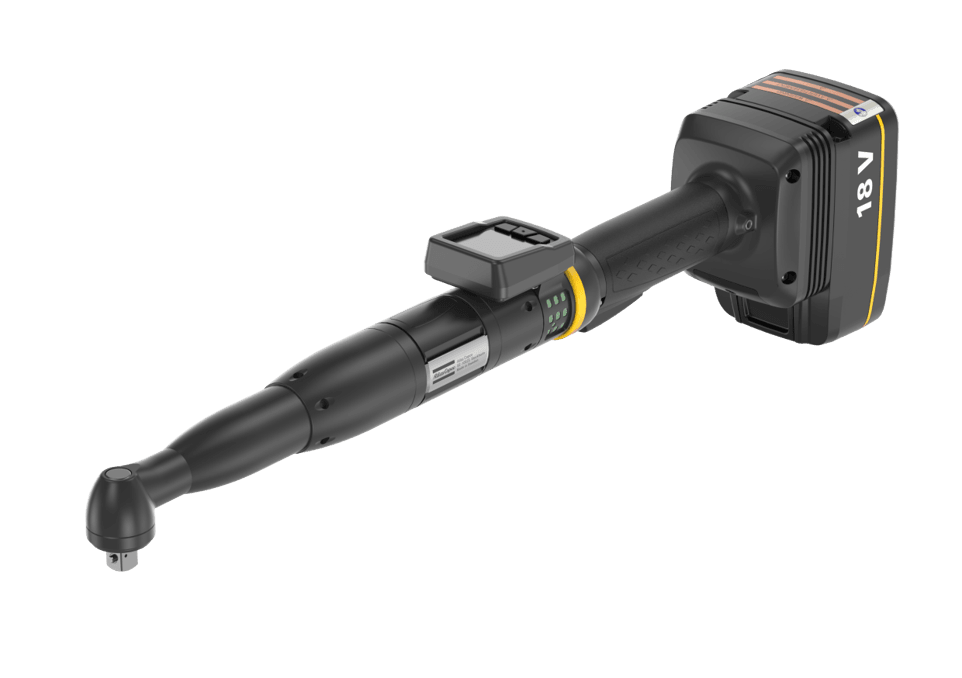

ITB-A: Offset 90°/110° _{^{75 Nm – 664 in-lbs}}

The Offset and Extended Offset 90° configurations enhance ITB-A features with better accessibility thanks to its wide range of GFA:

Adapter length: 3”, 5” and 8”

Socket Type:

Up to 75 Nm (COT-81): Standard
Up to 50 Nm: Hold & Drive

Socket Extension: up to 100 mm

Socket Size: (COT-81): up to 19 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 75 Nm

Know more

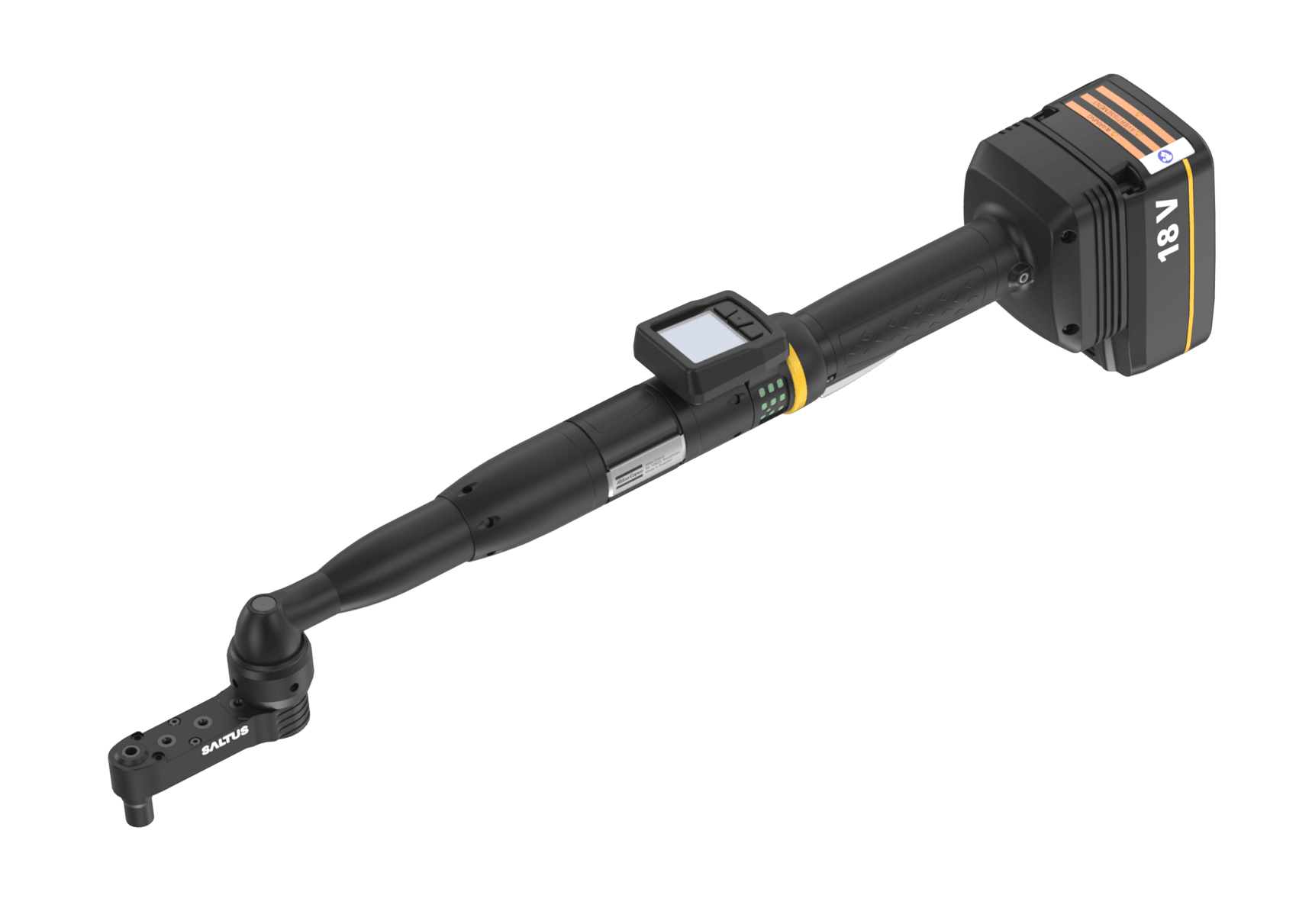

The Offset and Extended Offset 110° configurations enhance ITB-A features with better ergonomics due to its 110 deg. Angle head and accessibility thanks to its wide range of GFA:

Adapter length: 3”, 5” and 8”

Socket Type:

Up to 75 Nm (COT-81): Standard
Up to 50 Nm: Hold & Drive

Socket Extension: up to 100 mm

Socket Size: (COT-81): up to 19 mm

Tightening Strategy: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 75 Nm

Know more

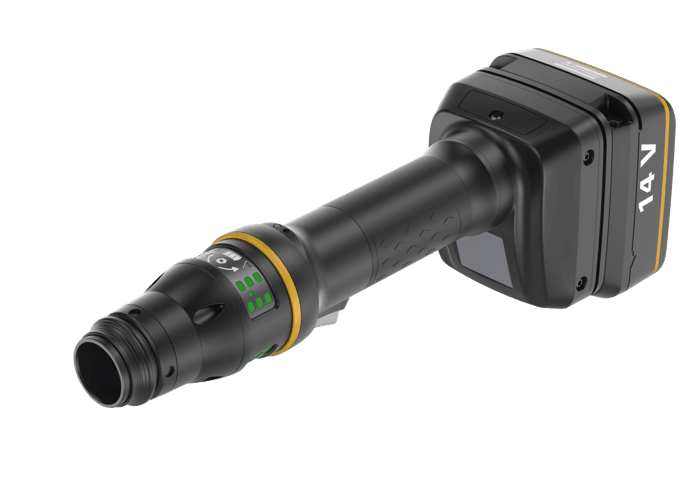

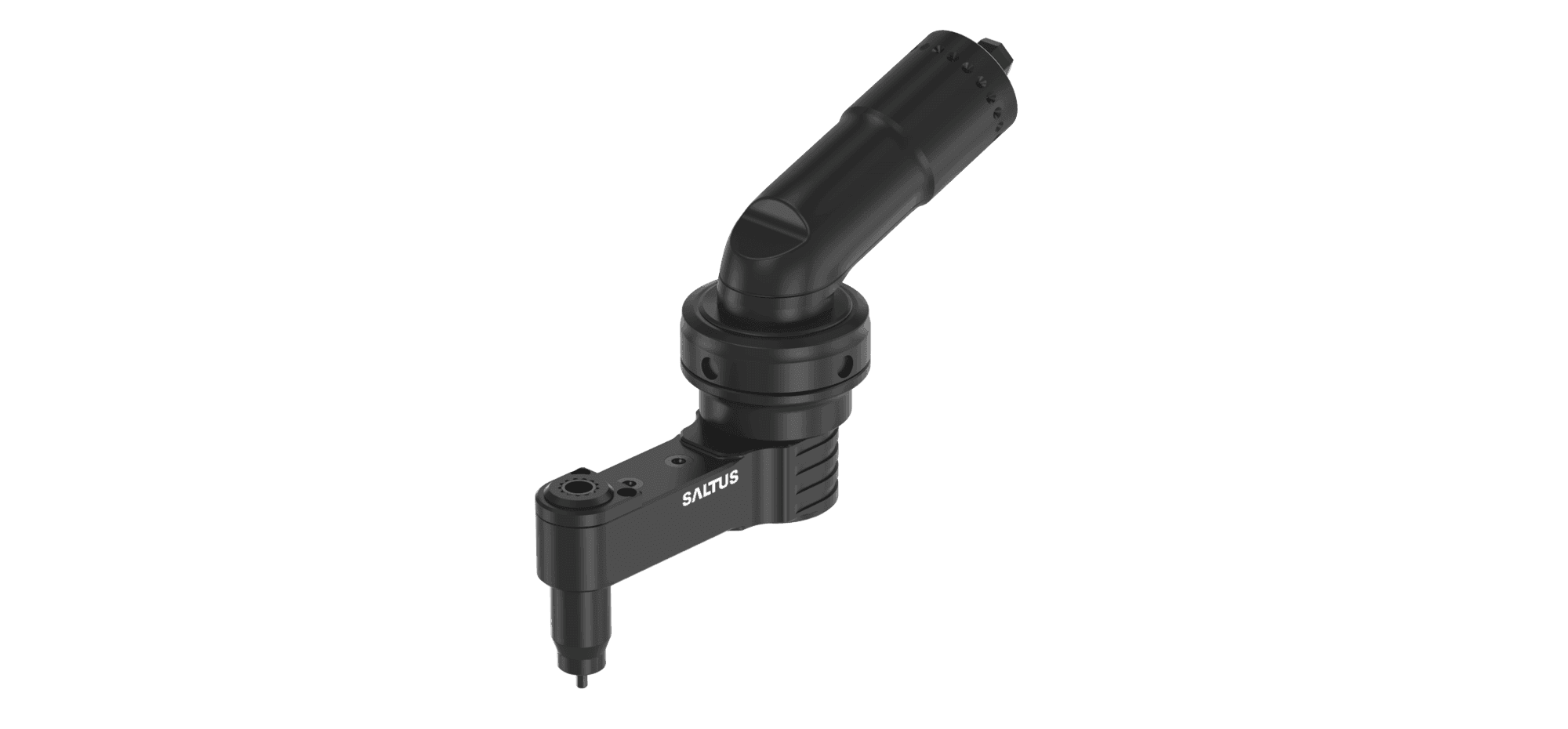

ICB-Q _^Components

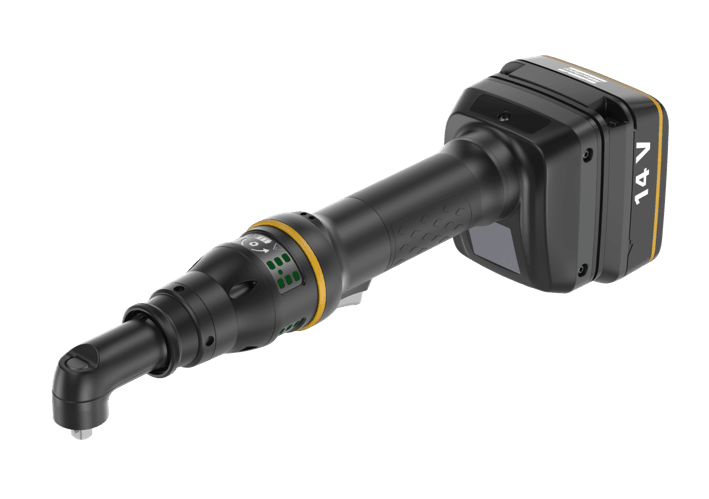

The ICB-Q is the tool that combined with a Quick-Change Angle head (Q2) becomes an ICB-A. Keeping all the benefits of this type of tool but improving versatility by being able to transform into any of these configurations with just “one-click”
Know more

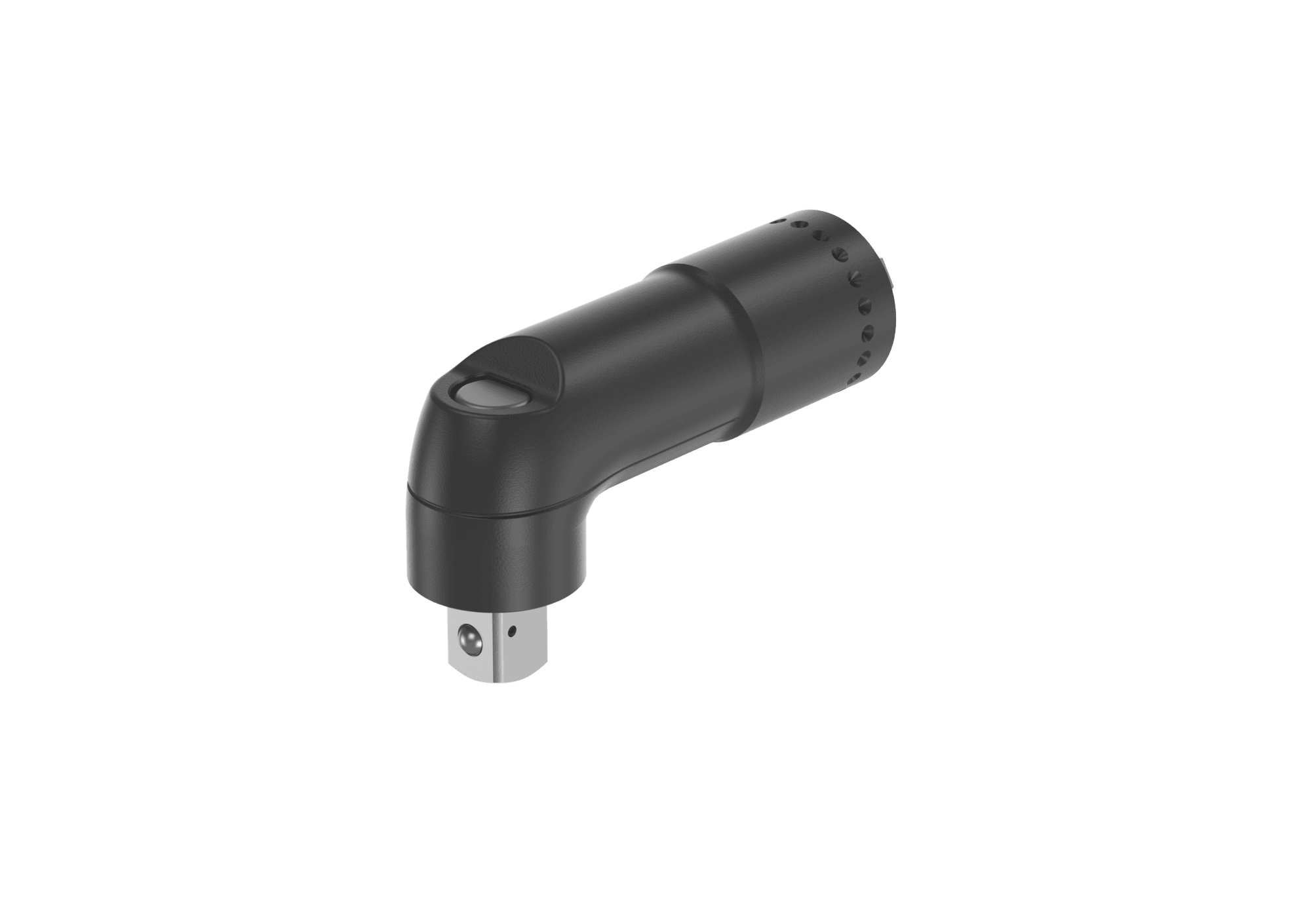

The Q2 head is meant to be installed in the ICB-Q to become a complete tool.The beauty of the Q2 head is that it is customizable in the same way as a standard tool, becoming any of these configurations:

Q2-A: Angular 90 deg

Q2-Z: Angular 110 deg.

Q2-HAD: Hold and Drive 90 deg

Know more

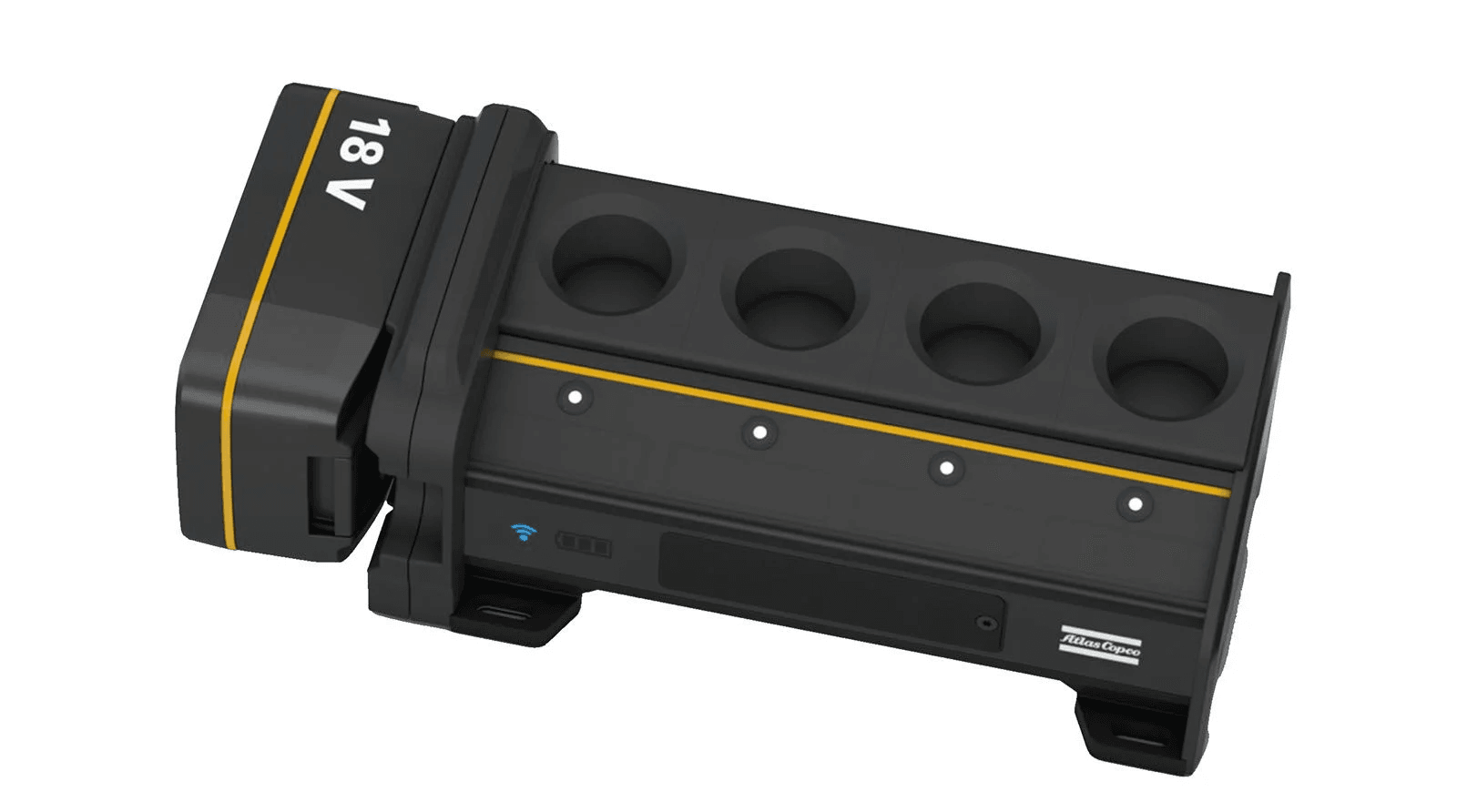

Once the Q2 head is installed in the ICB-Q, you can manually select the appropriate program with the correct parameters using the HMI version of the ICB-QAlternatively, you can use the Selector 6 M4 (8433 0613 04) or 6 M8 (8433 0613 08). By selecting the correct head from the selector, the program with the right parameters is automatically set in the tool, suitable for both ad-hoc and infrastructure configurations.Know more

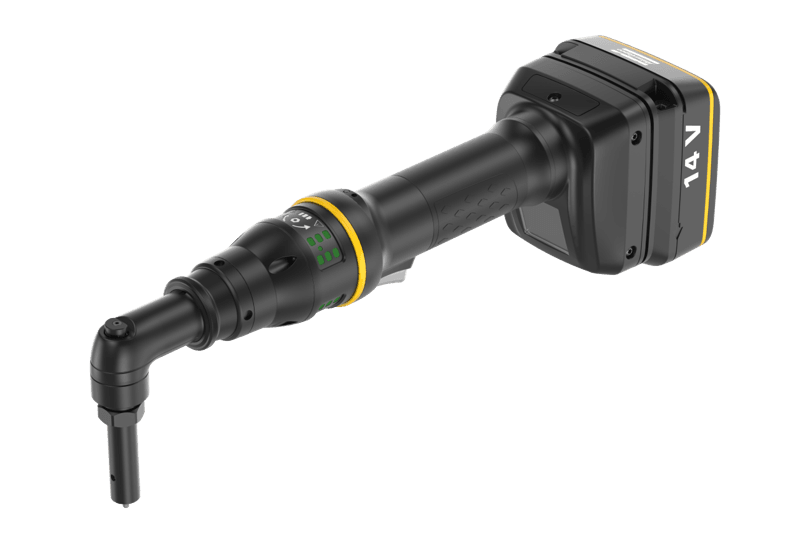

Q2: _{^{Offset 90°/110° and HAD 15 Nm – 133 in-lbs}}

The Q2 - Offset and Extended Offset 90° configurations enhance Q2-A features with better accessibility thanks to its wide range of GFAs:

Adapter length: 3”, 5” and 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategies: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 18 Nm

Know more

The Q2 - Offset and Extended Offset 110° configurations enhance Q2-A features with better accessibility and ergonomics thanks to its 110° Angle head and the wide range of GFAs:

Adapter length: 3”, 5” and 8”

Socket Type: Standard, Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategies: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 12 Nm

Know more

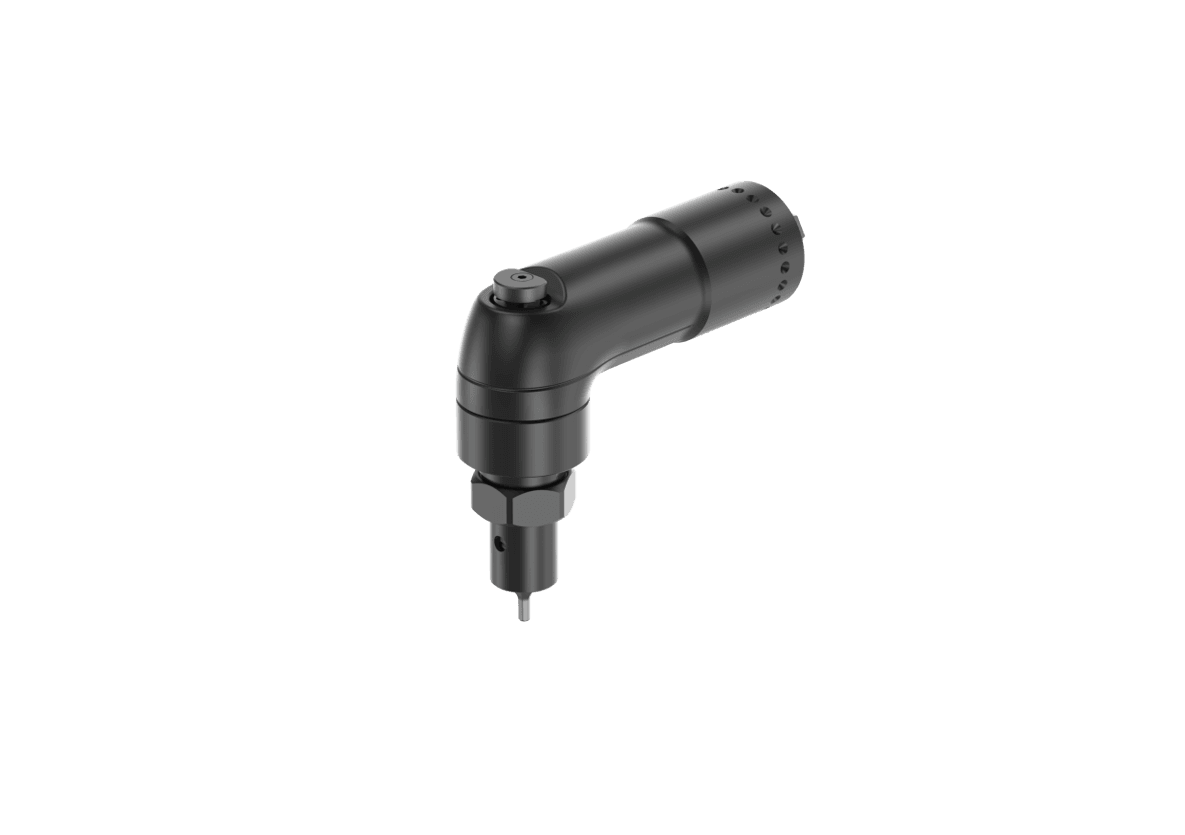

The Q2-HAD. Configuration enables the possibility of tightening Hold and Drive fasteners. This version is recommended when the accessibility is not so critical to need any of the previous offset versions.

Socket Type: Hold & Drive (HAD)

Socket Extension: up to 100 mm

Socket Size: up to 10 mm

Tightening Strategies: Pre-Torque (PT), Torque (T) and Shear-Off (SO) up to 15 Nm

Why Atlas Copco
customized tools?

When you choose one of our customized tools, you choose:

SafetyOur customized tools are configured with the support of automated processes that ensure the highest safety standards. Every tool equipped with OOT is automatically set up with a Dual Trigger mechanism for optimal operator protection.

Complete Tool EngineeringA customized tool is more than just a Tool + GFA. Our patented adapter for XB tools ensures exceptional durability without glue and allows easy servicing, extending the tool's lifespan.

Quality Both the standard tool and GFA are produced and assembled in our workshop in Sweden, adhering to the same rigorous Atlas Copco quality standards. This ensures unmatched precision and reliability across every component.

ServiceWhen you purchase an Atlas Copco tool, you gain the support of an experienced team from start to finish. From the quoting process and tool selection to installation assistance and ongoing maintenance, our Service department is here to support your needs.

GuaranteeChoosing one of our customized solutions means relying on a single trusted supplier for the complete tool package: Atlas Copco.

Our customized tools are equipped with high-performance Saltus GFAs, designed for precision and efficiency. Their exceptional accuracy translates to superior performance, while extended service intervals guarantee maximum uptime in production—qualities that define all our products.
