Explore our air & gas treatment solutions for your compressed air system . Our dryers, oil-water separators, drains, filters and tanks are available for maintaining your air qualiy
FX/FD VSD : Refrigerated compressed air dryer provides efficient and reliable dry compressed air. The addition of the variable speed dryer offers the highest possible energy savings when coupled with a VSD compressor.
Min-Max : 13-9,746 cfm | 4-14 barg
CD+/CD+ CeradesTM : Heatless desiccant dryers remove moisture from your compressed air with pressure dew point ranging from -20° to -70°C. CeradesTM dryers utilize solid desiccant for higher efficiency and performance.
Min-Max : 2.1-3,602 cfm | 4-16 barg
SD Dryer : Membrane dew point suppression dryer capable of reducing moisture content by 55° to 100° F below inlet temperatures.
Min-Max : 6.4-116.6 cfm | 4-13 barg
AD/BD/XD Dryer : State-of-the-art heated and heated blower purge desiccant dryer capable of providing pressure dew points of -40° to -70°C with maximum energy efficiency and system connectivity.
Min-Max : 635-21188 cfm | 4.5-14.5 barg

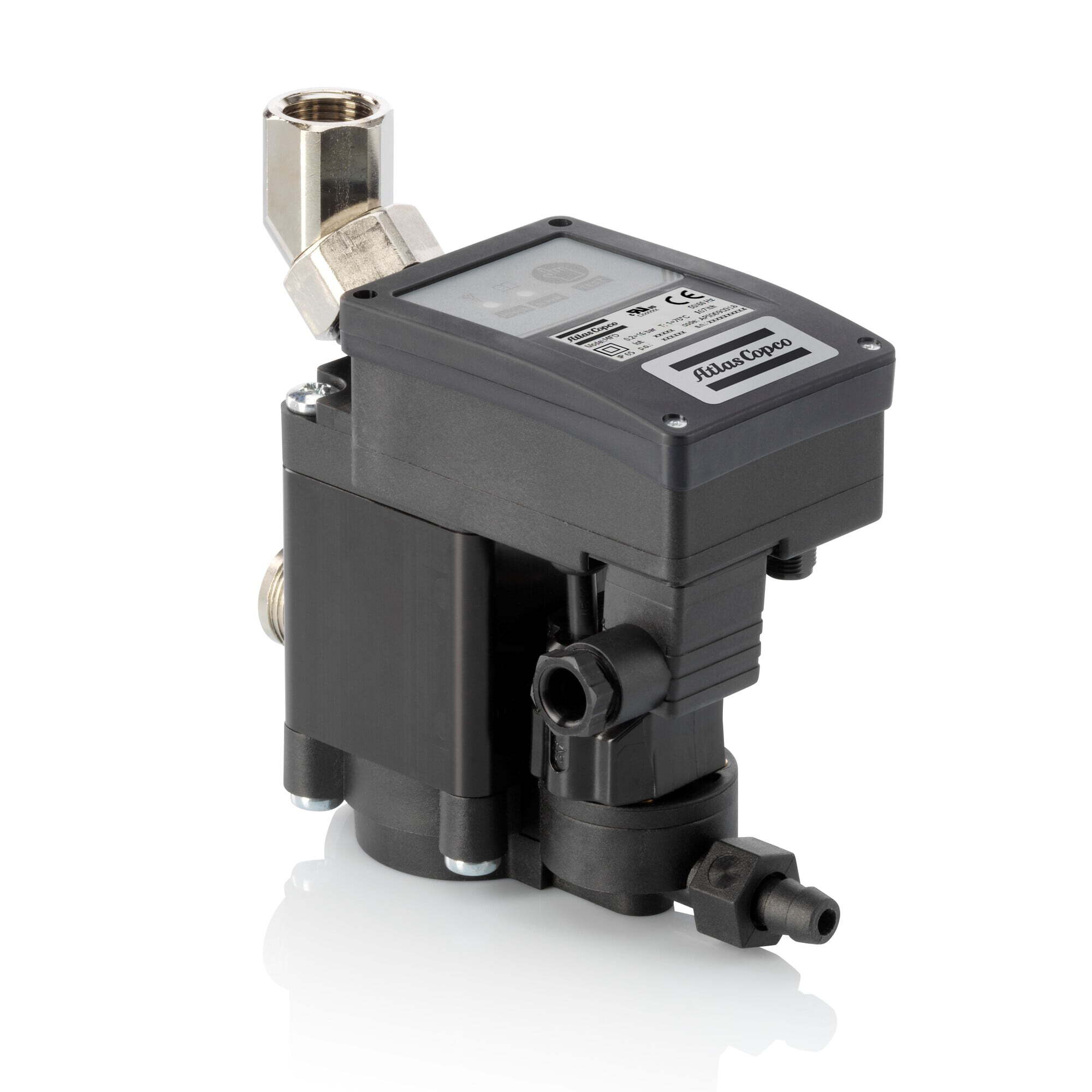

IWD : Intelligent water drains offers safe, dependable and efficient condensate drainage. The zero-loss drain only releases its moisture content when it reaches a pre-set level. Leaving a minimal amount of moisture, the IWD ensures no energy can escape as the condensate empties. Thanks to its special housing, the IWD can be used in oil lubricated and oil-free installations.
Min-Max : 106-21189 cfm | 0.2-16 barg
MDG Dryer : Heat of compression dryers, MDG Dryer 450-1050-2100 models, specifically designed to operate with Atlas Copco’s oil-free compressors, will eliminate compressed air moisture with guaranteed -40degC PDP and no purge air and no more electrical energy than is used to power a light bulb.
Min-Max : 424-8475 cfm | 4-10.4 barg
CO2 Removal : For applications requiring dry and CO2-free air, our CO2 removal unit protects your compressed air process and maintains the quality of your end product by removing carbon dioxide from compressed air down to 10 ppm or 1 ppm and by removing moisture from compressed air below 0.5 ppm (-70°C/-70°F)
OSC : Our oil-water separators remove the oil from your compressor system condensate before it can be safely disposed of. The latest design offers multistage filtration which removes a wider range of oil types and allows compliance with local regulations for safe condensate discarding.
Min-Max : 25-6,622 cfm | 4-13 barg
QDT : The high-efficiency activated carbon tower is capable of removing hydrocarbons, odours and oil vapour from compressed air. The “energy saving” low-pressure drop towers use adsorption to reduce the residual oil content.
Min-Max : 42-3,814 cfm | 1-16 barg

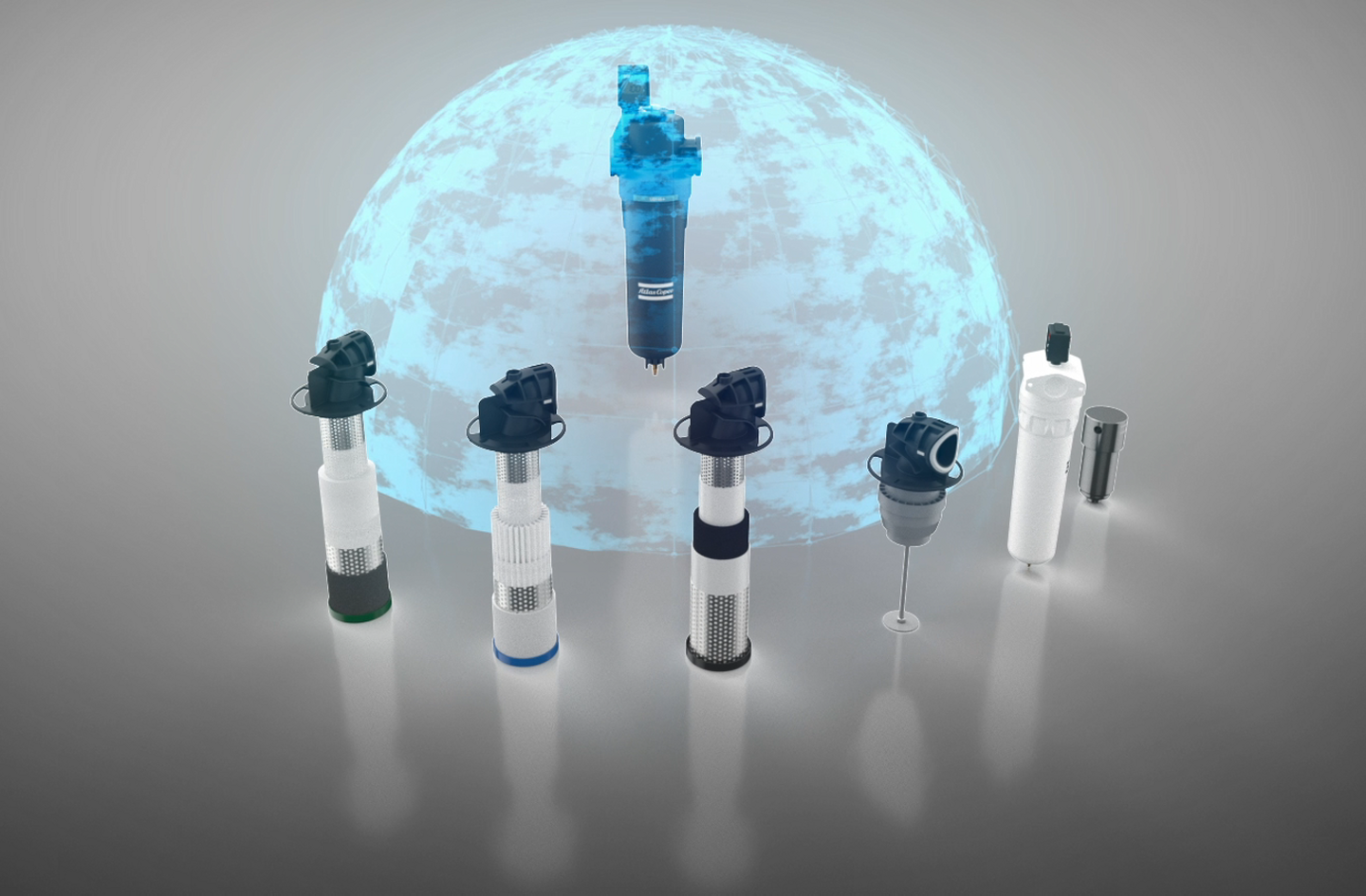

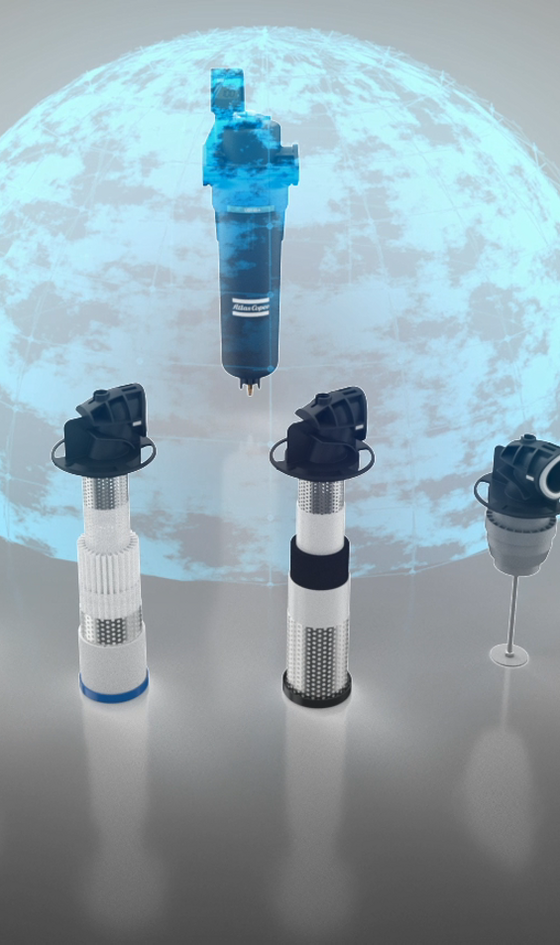

DD(p)+/PD(p)+/UD+/QD+ : Low-pressure drops and ISO class filtration levels make Atlas Copco coalescing and particulate filters the perfect solution for your quality air needs. The new generation filters also utilize the revolutionary in PASSTM, a built-in bypass to reroute the air during filter maintenance. Silicone free also available.
Min-Max : 15-16,952 cfm | 1-16 barg

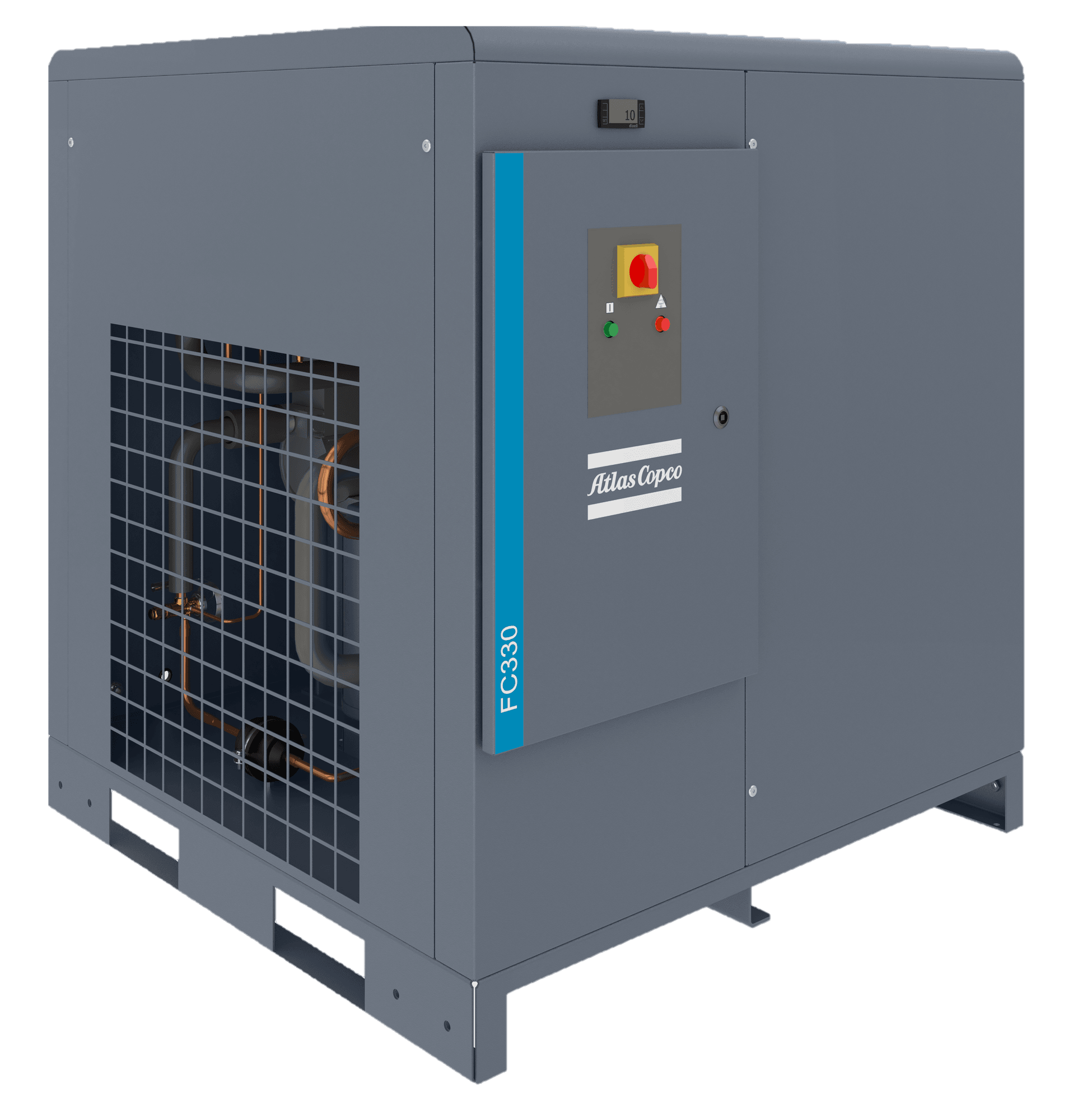

FC Chillers : It is built to cool compressed air. Purpose is to lower compressed air discharge temperature by up to 25degC.
Available as air-cooled in 8 models.
Min-Max : 700-2542 cfm | 10 barg

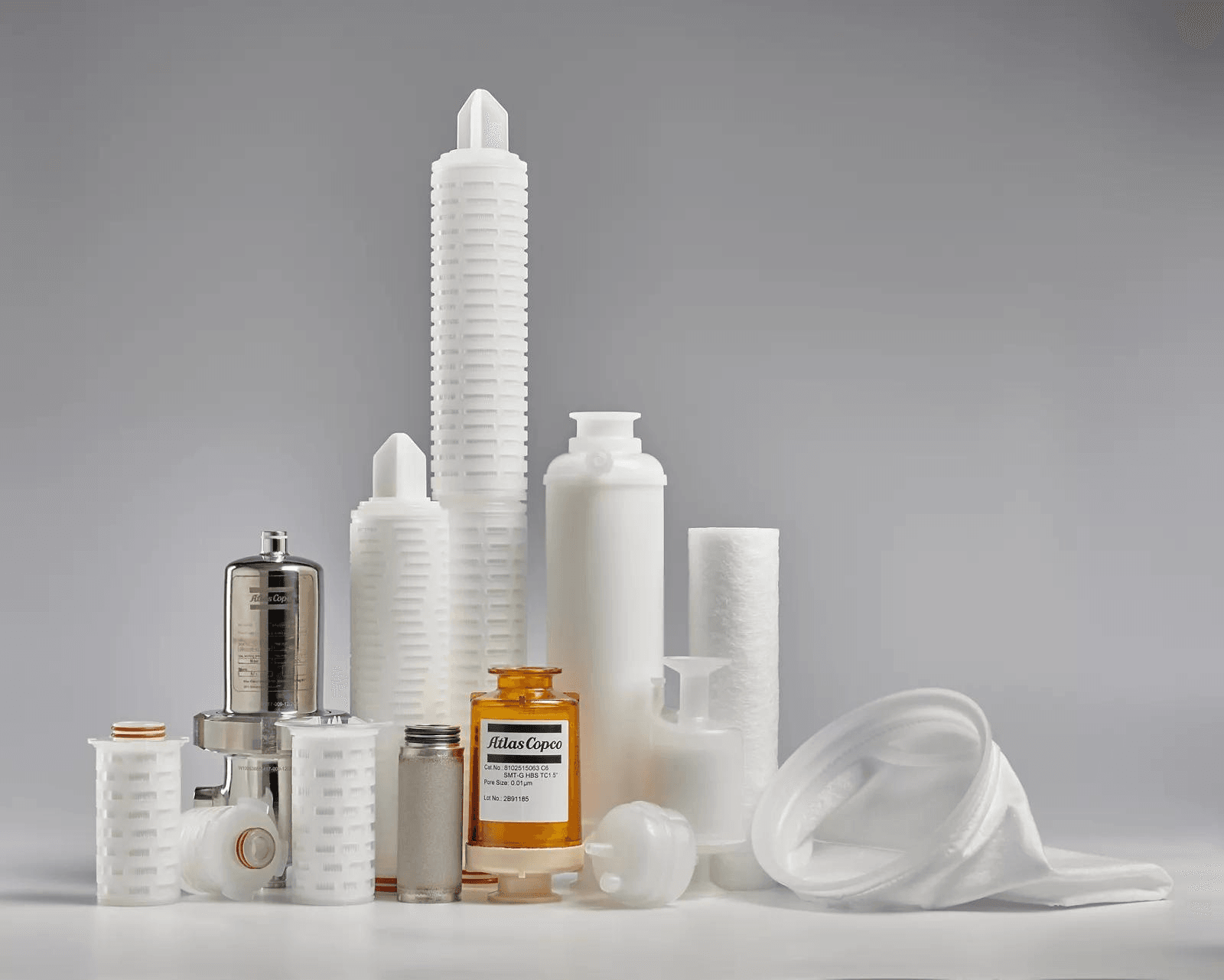

Process Filters : Protecting process, products and people. Our portfolio of process filter cartridges, capsules, bags, and housings complements the market leading range of industrial filters and serves specific filtration and purification needs of customers in Food & Beverage, Microelectronics, Pharmaceutical, Cosmetics and Chemical industries.
Stainless Steel HousingRange of cartridge material Gases; Air / N2 / O2/ CO2 & mixtures Sterile grade (validated)
