Mining heavy equipment maintenance, high torque applications

Battery and electric smart high torque tools

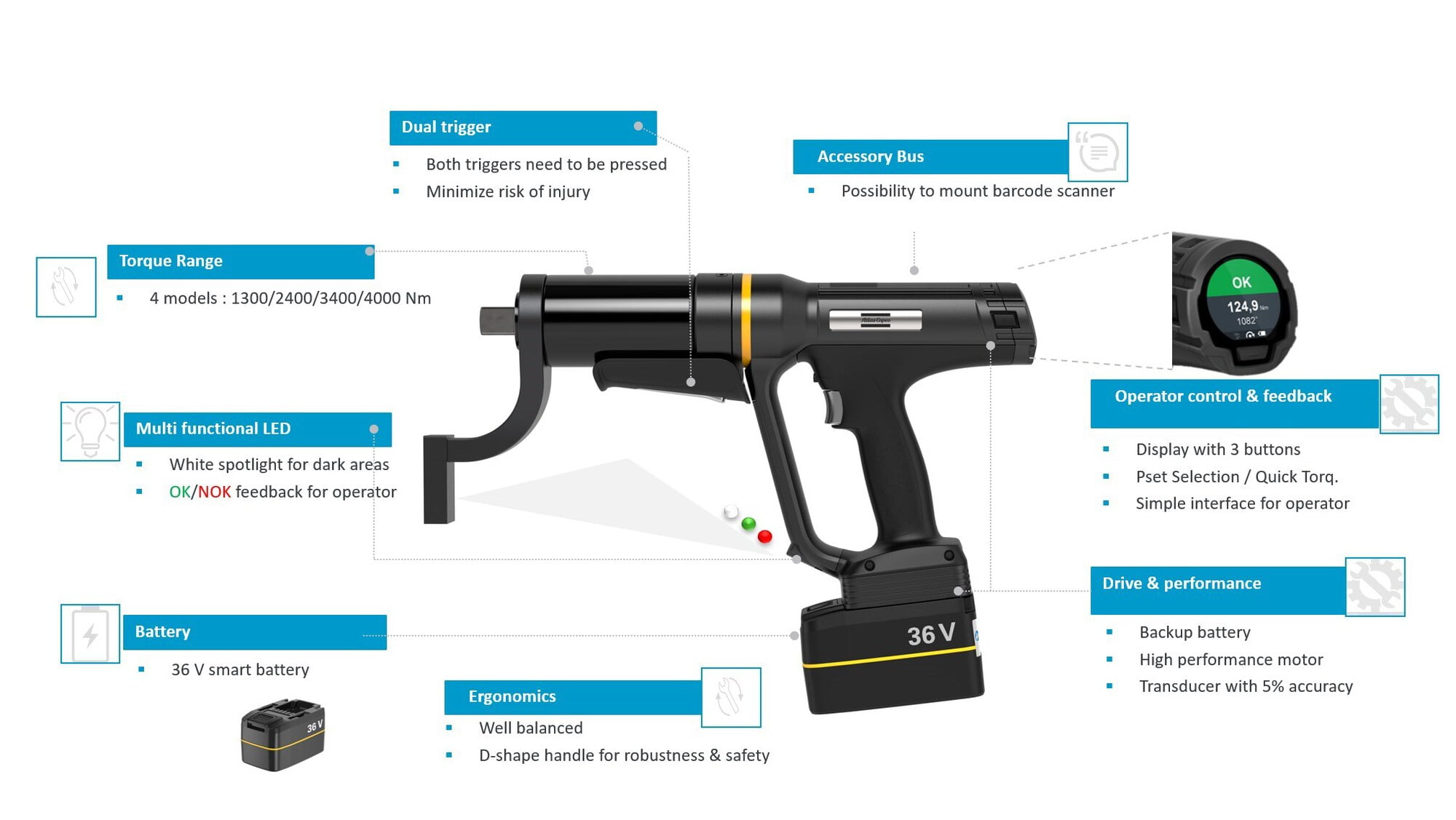

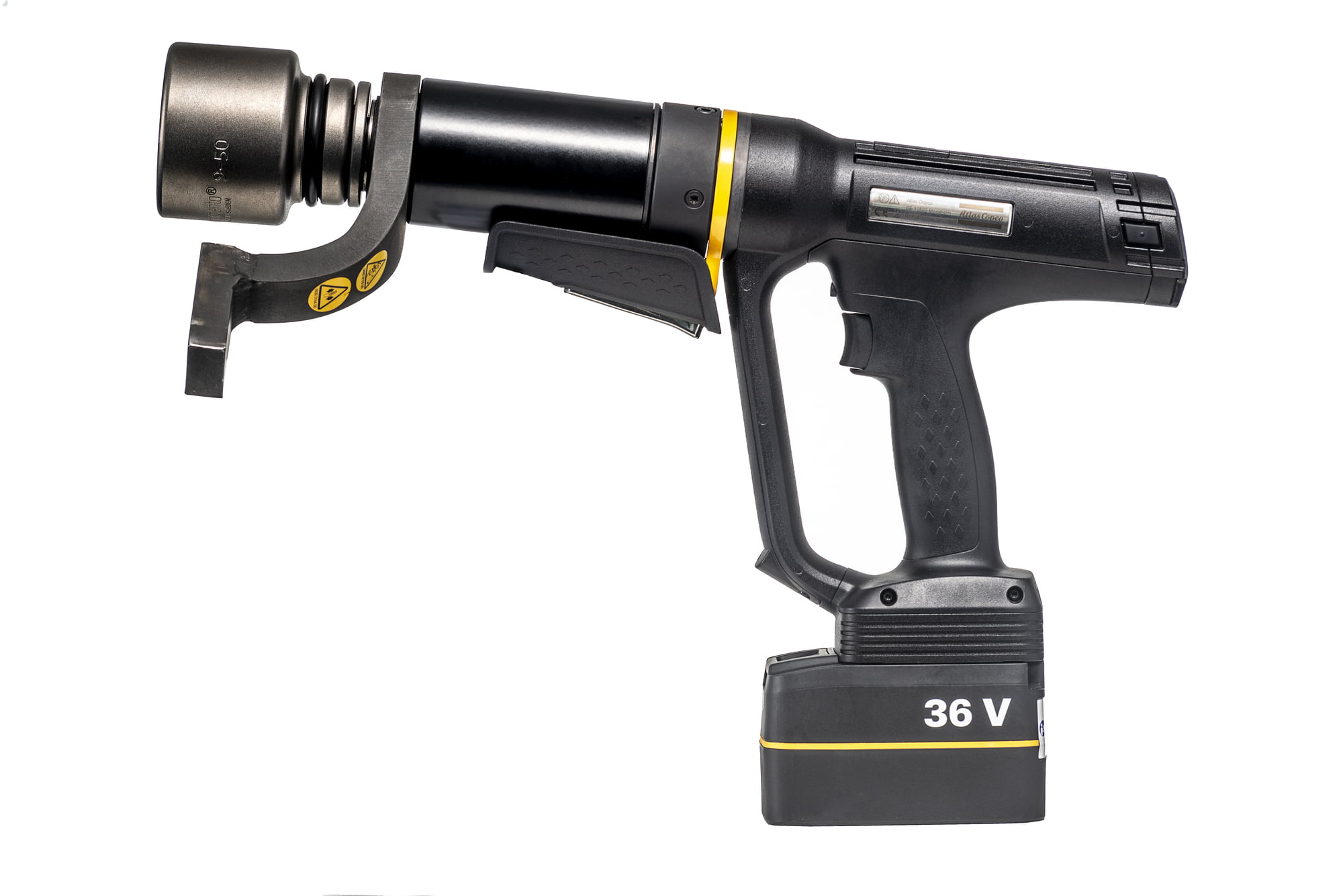

Battery nutrunners SRB HAAs pioneers in the field, we introduced smart electric tools to factories over 30 years ago. Building on our expertise, we now bring the concept of the smart factory to the field with our latest high torque battery nutrunner range, reaching up to 6500Nm. Atlas Copco's new battery range features a torque transducer for utmost reliability. Equipped with powerful motors and a new dual trigger design, these tools prioritize operator safety, minimizing the risk of injuries. Our commitment lies in making the operation process faster, safer, and smarter for our valued customers.Extensions and reaction bars

Model	Square drive	Torque range Nm	Speed rpm	Weight kg*	Length mm	Kit ordering number*
ETP SRB81-1300 HA	¾”	390-1300	23	5,5	378	8433 2506 81
ETP SRB81-2400-HA	1”	720-2400	11	6,8	428	8433 2507 81
ETP SRB81-3400-HA	1”	1020-3400	7	8,5	441	8433 2500 81
ETP SRB81-4000-HA	1”	1200-4000	5	8,5	441	8433 2508 81
ETP SRB81-6500-HA	1 ½"	1650 - 6500	2,6	10,7	491	8433 2510 81

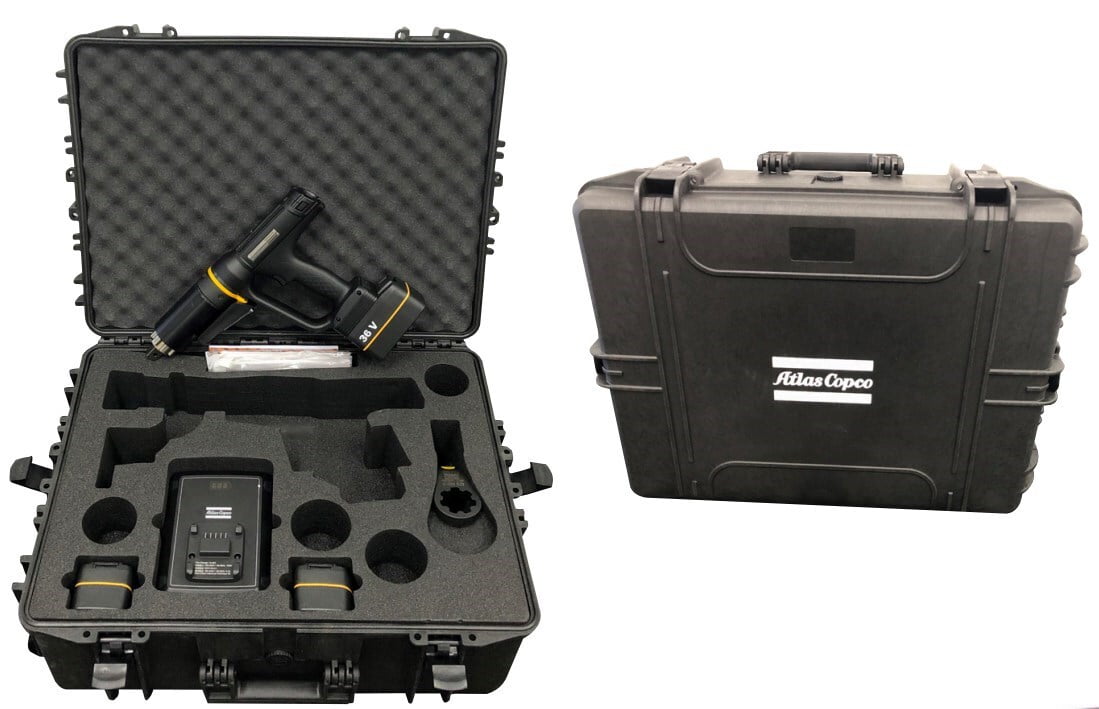

*Kit includes tool, case, charger, 2 batteries and S-type reaction barSRB HA kit, the scope of the supply

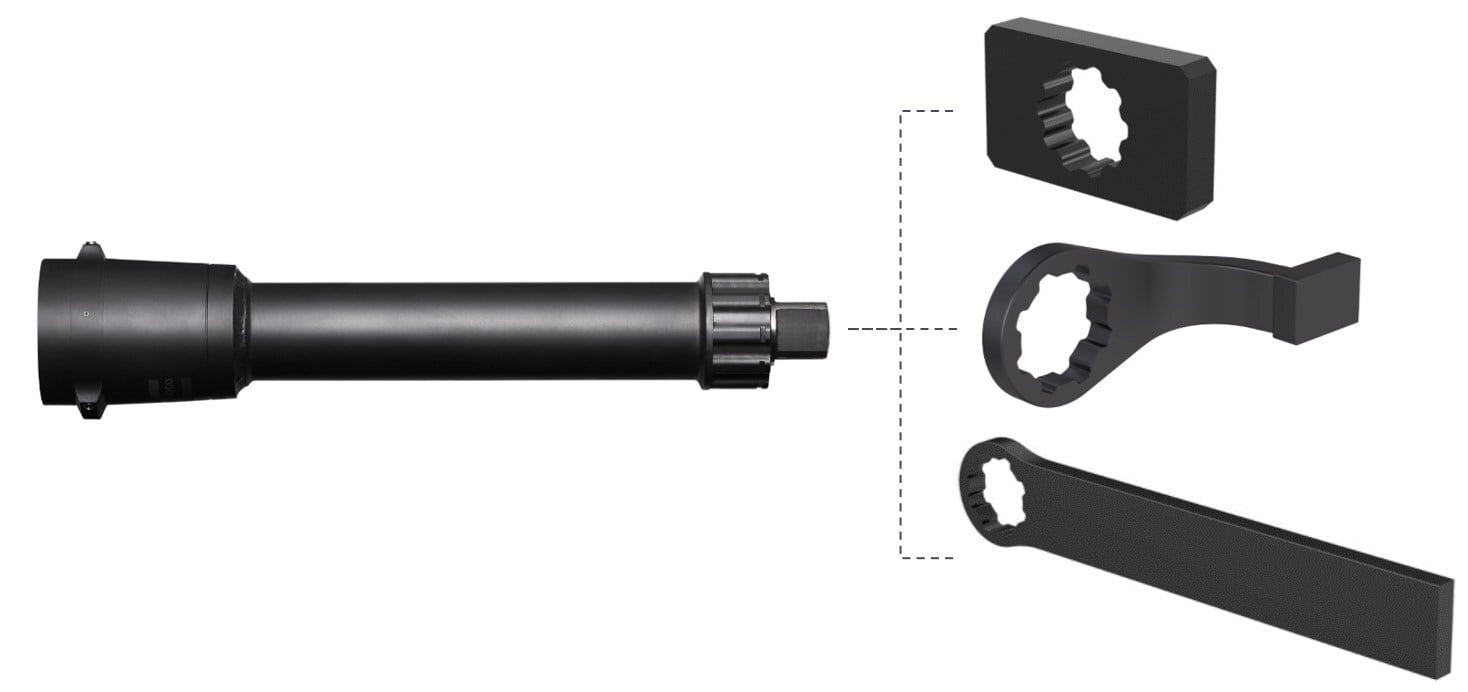

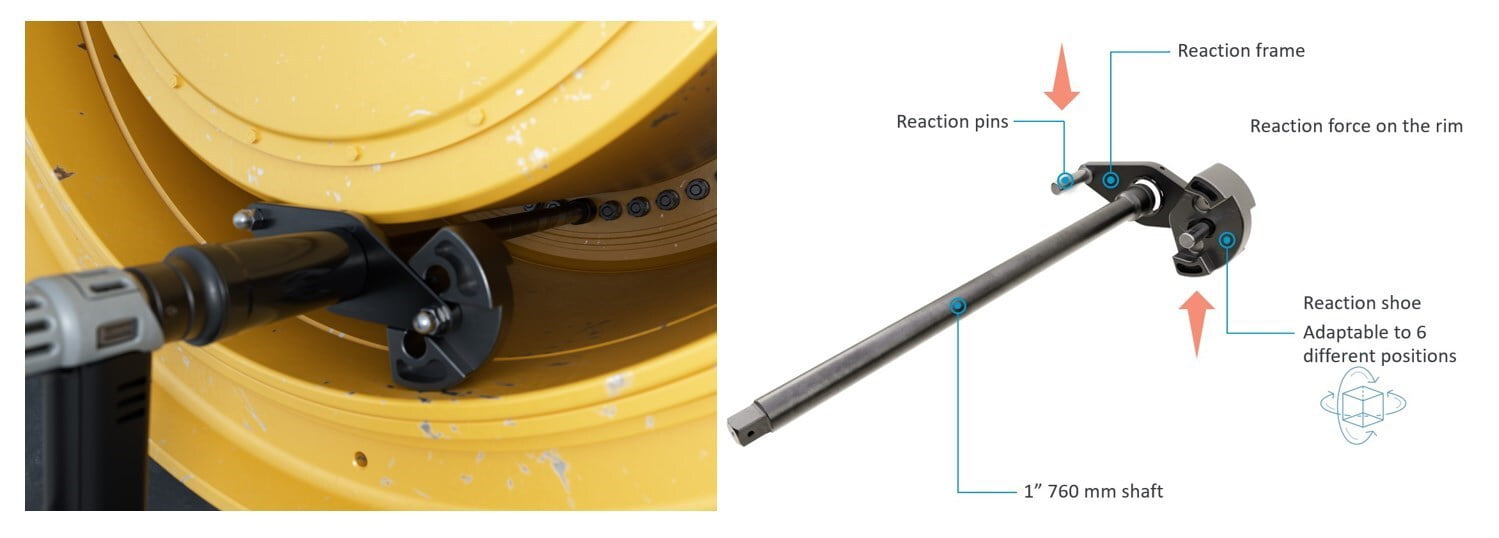

Rear wheel extension with a reaction bar

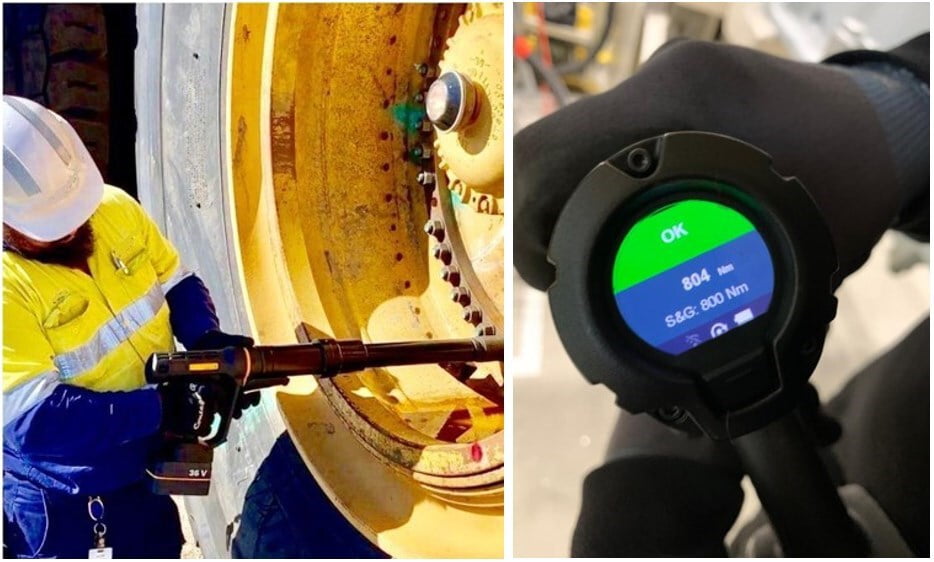

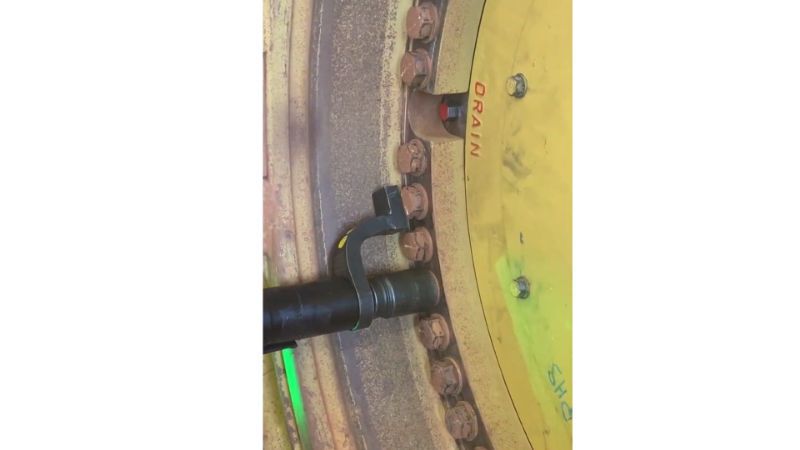

SRB HA in work, wheel application

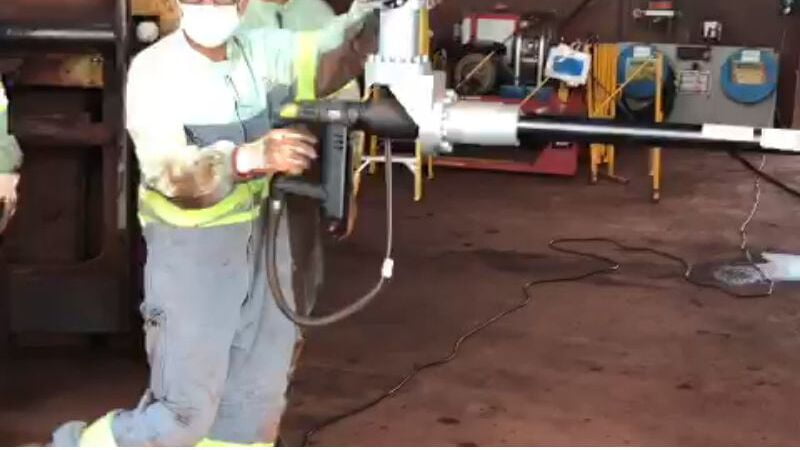

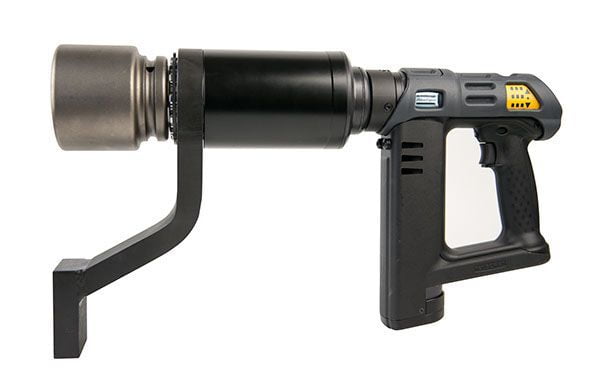

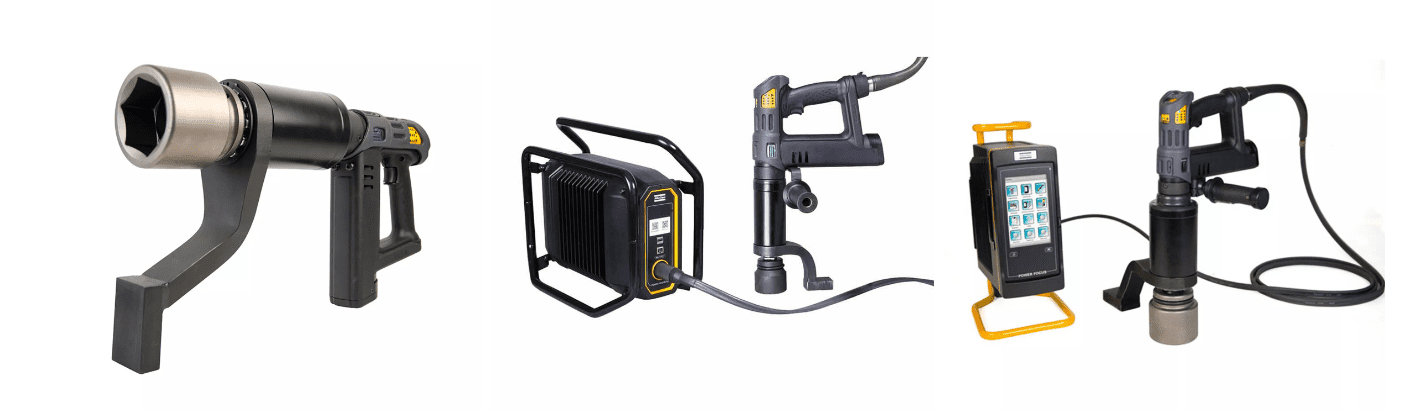

Electric nutrunner Tensor Revo HA Introducing the Atlas Copco Tensor REVO HA, one of the fastest electric nutrunners in the market. With an impressive speed of 10 rpm and a torque capacity of up to 8,000 Nm, this advanced tool can revolutionize your maintenance operations. By incorporating the Tensor REVO HA, you can significantly reduce execution time for planned work and eliminate the risk of emergency shutdowns caused by loosened or broken bolts. Equipped with a torque transducer for maximum reliability, our Tensor Revo range is designed to bring the benefits of the smart factory to the field. Our commitment remains steadfast in making the operation process quicker, safer, and smarter for our valued customers.

Tool model	ETP ST101-2400-25-F-HA	ETP ST101-3400-25-F-HA	ETP ST101-4000-25-F-HA-2
Sq.Drive	1"	1"	1"
Torque Range, Nm	720-2400	1020-3400	1200-4000
Speed RPM	31	23	20
Weight, Kg	7.5	9.1	9.1
Length mm	400	412	412
Ordering No.	8433 2326 03	8433 2334 03	8433 2340 03

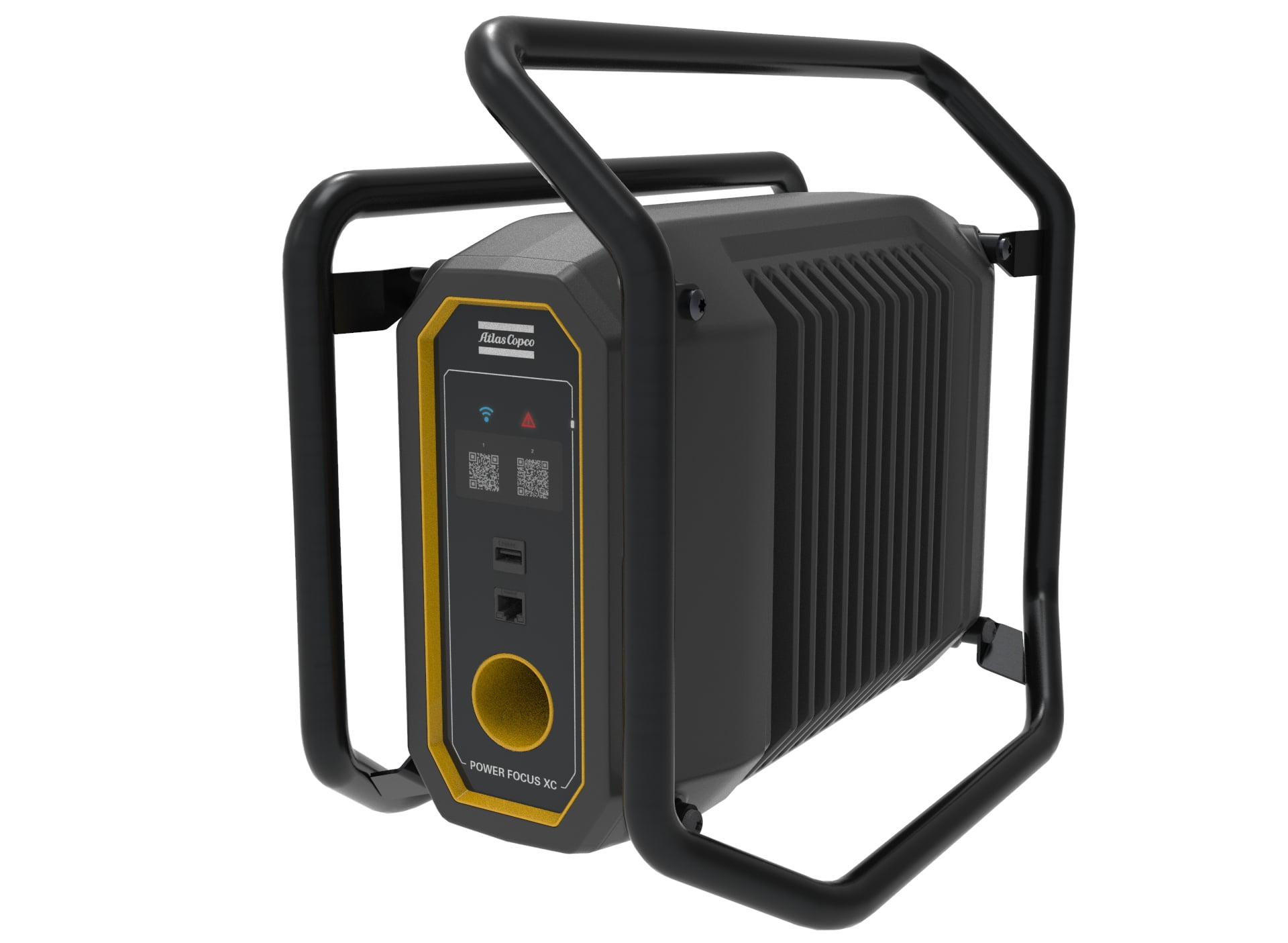

Tool drive model	Power Focus XC with license
Weight, Kg	11.2
Weight, Lb	24.69
Ordering No.	8436 1800 50

Optional accessories Articulated arm - AX | Absorbs the torque reaction generated by the tool - eliminating the impact on the operator. It also allows for smooth, comfortable movement by the operator with a close to zero-gravity handling force.

Zero Gravity AXZ | Compensates the weight of tool, providing weightless tool positioning, increasing productivity and reducing muscular stress from your operators.
