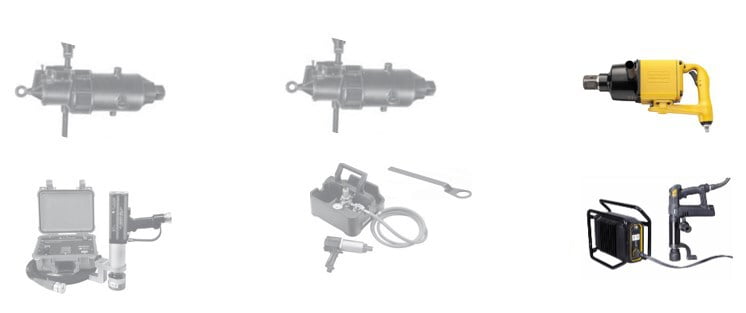

Step #2 Liners assembly
High-speed pre-tightening and precise tightening on the final torque
Optimize tightening speed and preserve impact wrench performance
To expedite the tightening process during mill lining operations, we propose a two-step approach. Firstly, we suggest pre-tightening with a high-speed impact wrench, provided it is approved by the equipment manufacturer.
Then, for achieving the final torque, the use of an electric tool is recommended. It is crucial to select the appropriate power rating for the impact wrench to prevent over-torque tightening of the bolted joints. Additionally, to prolong the lifespan of the impact wrench, it is advisable to limit trigger usage to no more than 5-7 seconds after completing the bolt run-down.
By implementing this pre-assembly step, you can attain the utmost speed in pre-installation (tightening) of the nuts on the lining bolts. This optimized approach not only streamlines the tightening process but also preserves the performance and longevity of the impact wrench.
Model
LMS68 GIR25
The size of the square shank, in.
1
Maximum tightening torque, Nm
4450
Free speed, rpm
5000
Weight, kg
9.6
Length, mm
252
Air consumption, l/s
28
Ordering number
8434 1680 00

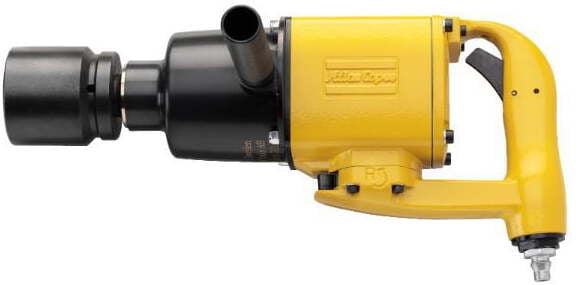

Explore the impact wrench LMS68 GIR25!
Enhance operator comfort and efficiency with tool balancers

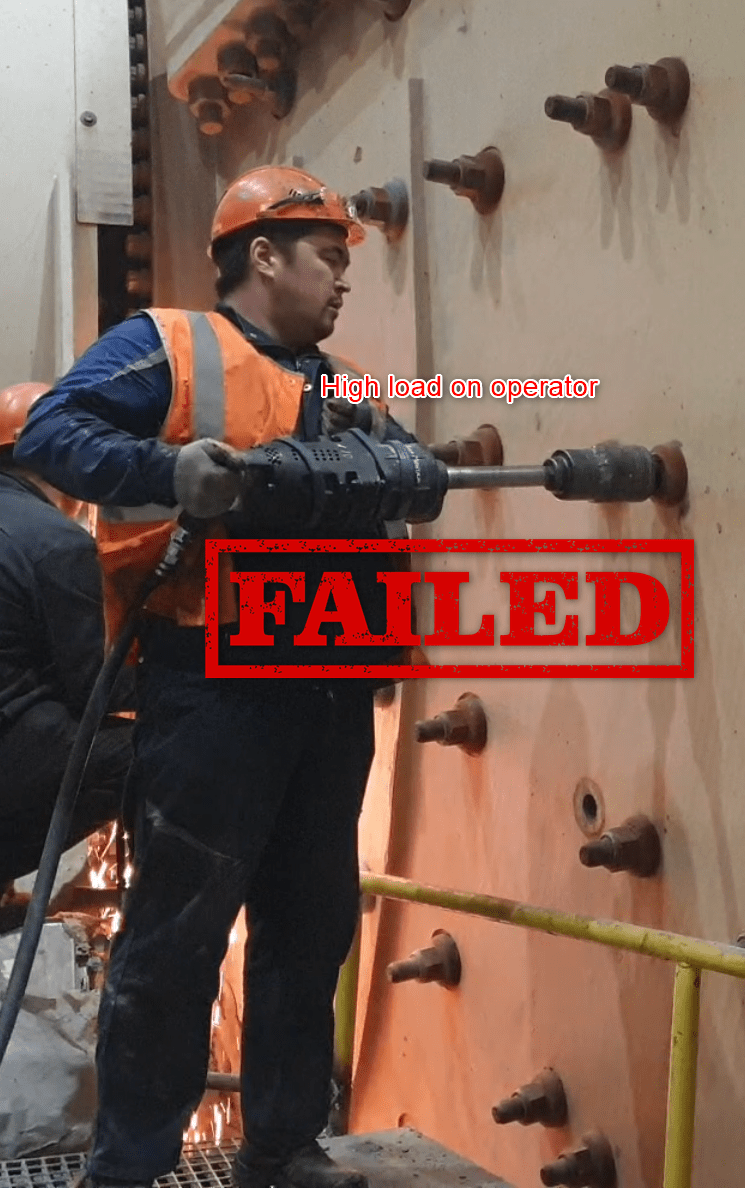

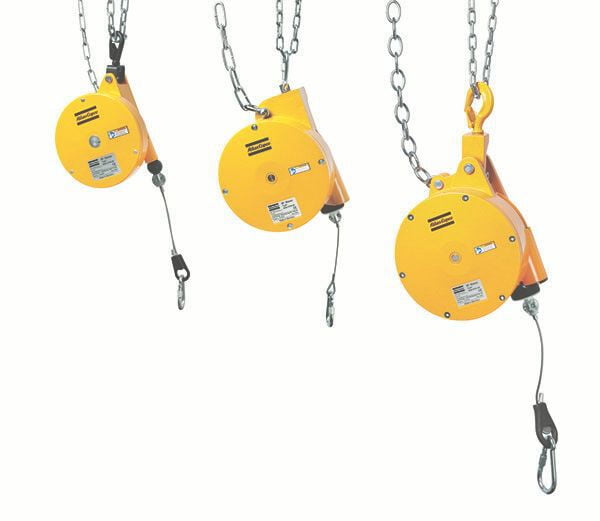

The substantial weight of an impact wrench often requires operators to bear its load for extended periods. However, employing balancers designed for heavy tools can significantly alleviate this strain and boost productivity. Lightweight balancers equipped with conical drums provide optimal tension support and effectively counterbalance the weight of the tool. Our WP 20 balancer features an aluminum body, while the WP 30 model is crafted from durable, wear-resistant aluminum.
By utilizing these innovative tool balancers, operators can experience improved comfort during prolonged tool usage, leading to increased speed and efficiency in their work.
Note: The revised version maintains the core message of the original text while enhancing its clarity and flow. It highlights the benefits of using balancers for impact wrenches, emphasizes their lightweight nature and conical drum support, and provides specific details about the WP 20 and WP 30 models.
Explore the weightless positioning tool balancers!

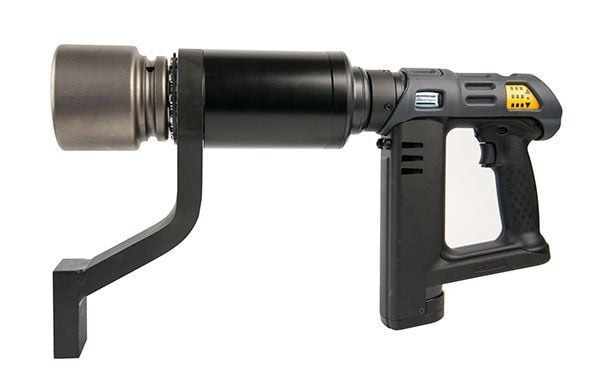

Experience unparalleled speed and power with one of the market's fastest electric nutrunner, the Atlas Copco Tensor REVO HA, boasting an impressive 10 rpm and a torque capacity of up to 8,000 Nm. By incorporating this advanced tool into your operations, you can significantly reduce the immediate execution time of planned work and eliminate the risk of emergency shutdowns caused by loosened or broken lining bolts.
Combining the cutting-edge technologies of sequential impact application (LMS) and electric performance (Tensor REVO), Atlas Copco offers a groundbreaking solution. This unique approach allows for a remarkable time reduction in the tightening process of lining bolt nuts, exceeding a remarkable 50% reduction.
Upgrade your operations to benefit from the unmatched speed and efficiency delivered by the Atlas Copco Tensor REVO HA electric nutrunner, revolutionizing your work processes and enhancing overall productivity.
Tool model
ETP ST101-6500-38-F-HA
ETP ST101-8000-38-F-HA
Sq.Drive
1½”
Torque Range, Nm
1950-6500
2400-8000
Torque Range, ft.lb
1438-4795
1770-5900
Speed RPM
12
10
Weight, Kg
13.2
13,2
Weight, Lb
29.1
Length mm
452
Ordering No.
8436 1800 50
8433 2328 03
Tool drive model
Power Focus XC with license
11.2
24.69

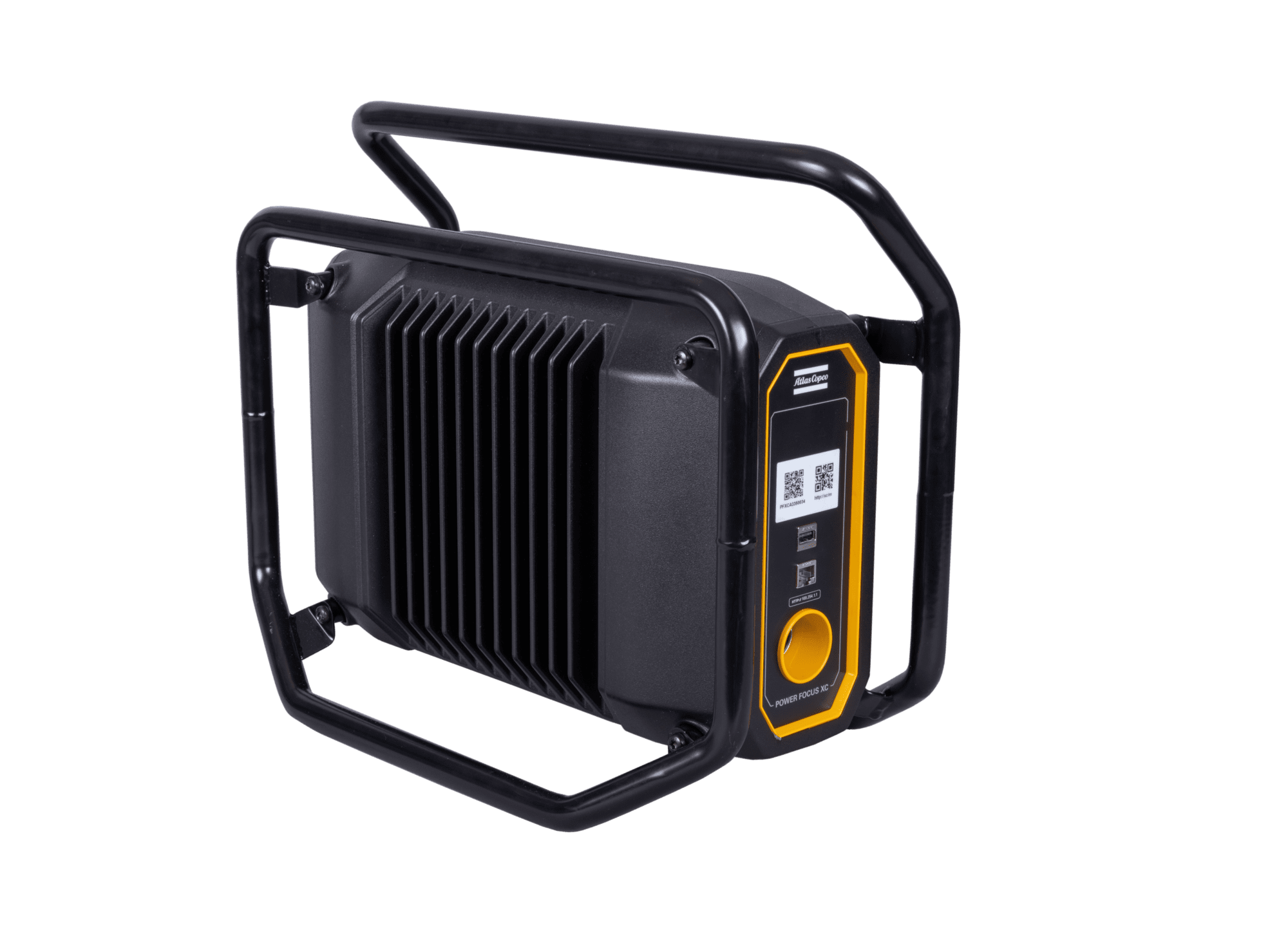

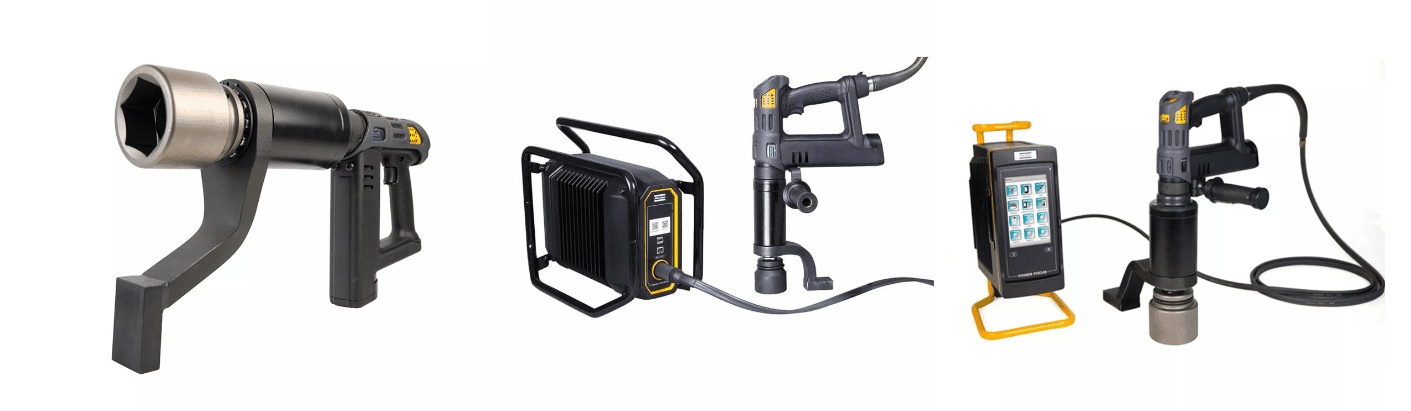

Experience the pinnacle of high-torque performance with the Electric Nutrunner Tensor Revo HA, standing as the fastest tool on the market. With a tightening speed up to 3 times faster than our competitors, it sets a new standard for efficiency and productivity. And now, with the cutting-edge PFXC torque controller, we have taken the best and made it even better.
Designed for simplicity and convenience
Scanning with your phone instantly grants you access to comprehensive information. No complicated setup or WiFi requirements.With the Power Focus XC torque controller, you can log in using any WiFi-enabled device, eliminating the need for WiFi connectivity. Take command and enjoy a host of features: effortlessly view real-time tightening results, configure Psets with customized tightening strategies, speed, and target torque. Moreover, share vital information with anyone around the globe! The Power Focus XC, when combined with any Tensor Revo tool, provides you with the ultimate Smart Electric Nutrunner system.

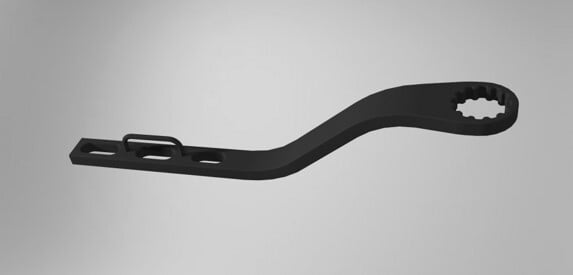

Reaction bar for SAG mill application up to 8000 Nm

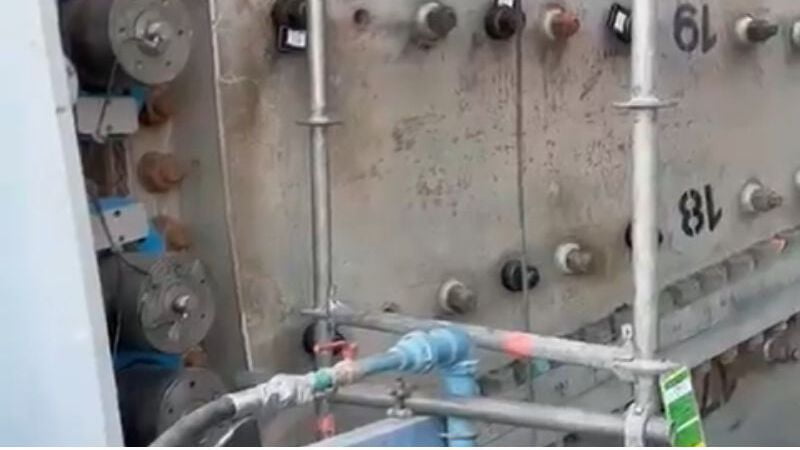

Watch the products in action!
Don't just take our word for it – see our products in action and witness the tangible impact they can have on your business. From enhanced performance and increased efficiency to streamlined processes and optimized results, our videos offer a glimpse into the transformative power of our offerings.

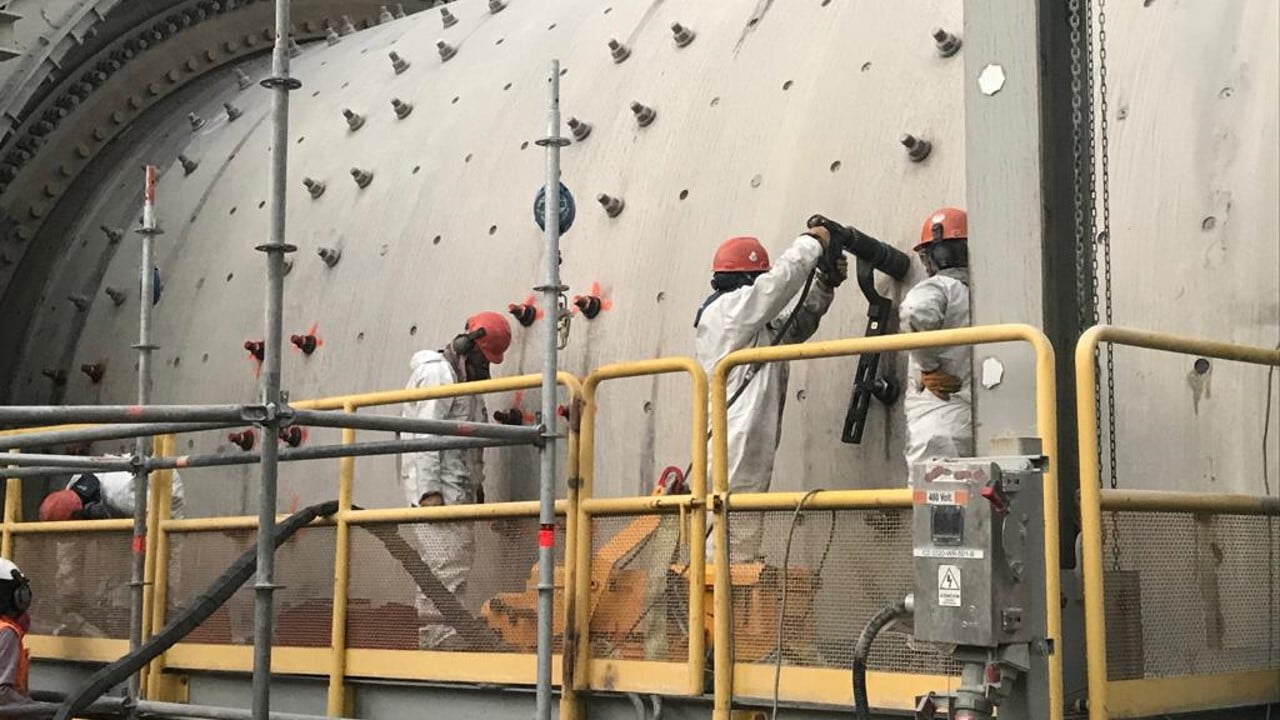

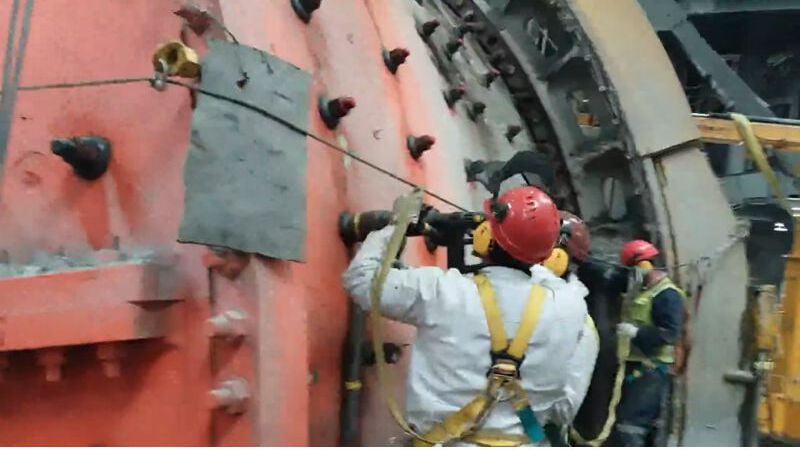

Unlock unparalleled efficiency with the aid of Atlas Copco's innovative and high-performance power tools. Experience a significant reduction in the tightening process time during relining, leading to minimal downtime of the mill. By incorporating Atlas Copco's cutting-edge power tools into your operations, you can optimize productivity and minimize the impact of downtime. Our tools are designed to deliver exceptional performance, ensuring swift and precise tightening during the relining process. Benefit from reduced time requirements, allowing for more efficient maintenance and faster turnaround.
With Atlas Copco's commitment to innovation and reliability, you can trust our power tools to deliver superior results, enabling you to maximize productivity and minimize mill downtime.
SAG Mill
816 bolts, torque 4200 ft.lb. or 5694 Nm
Tool type
Impact + Electric Competitor
Impact + Pneumatic Competitor
Impact + Electric TENSOR REVO 8000
Speed
830 + 4 RPM
830 + 5.3 RPM
3800 + 10 RPM
Tightening time per Bolt
66 Sec
53 Sec
23 Sec
Total Time
14 Hrs, 58 Min
12 Hrs, 1 Min
5 Hrs, 13 Min
